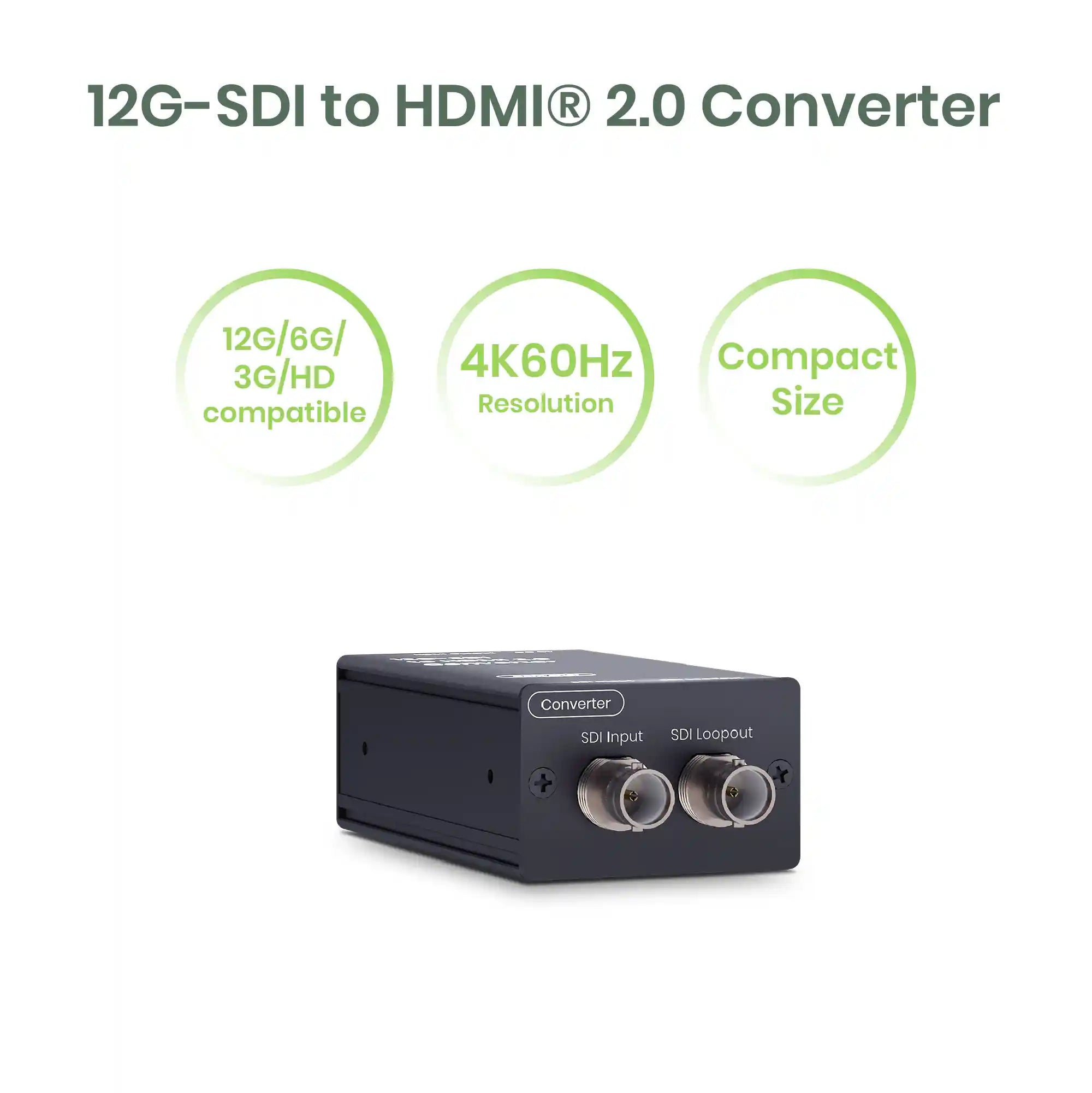

12G-SDI to HDMI® 2.0 Converter – TAA Compliant

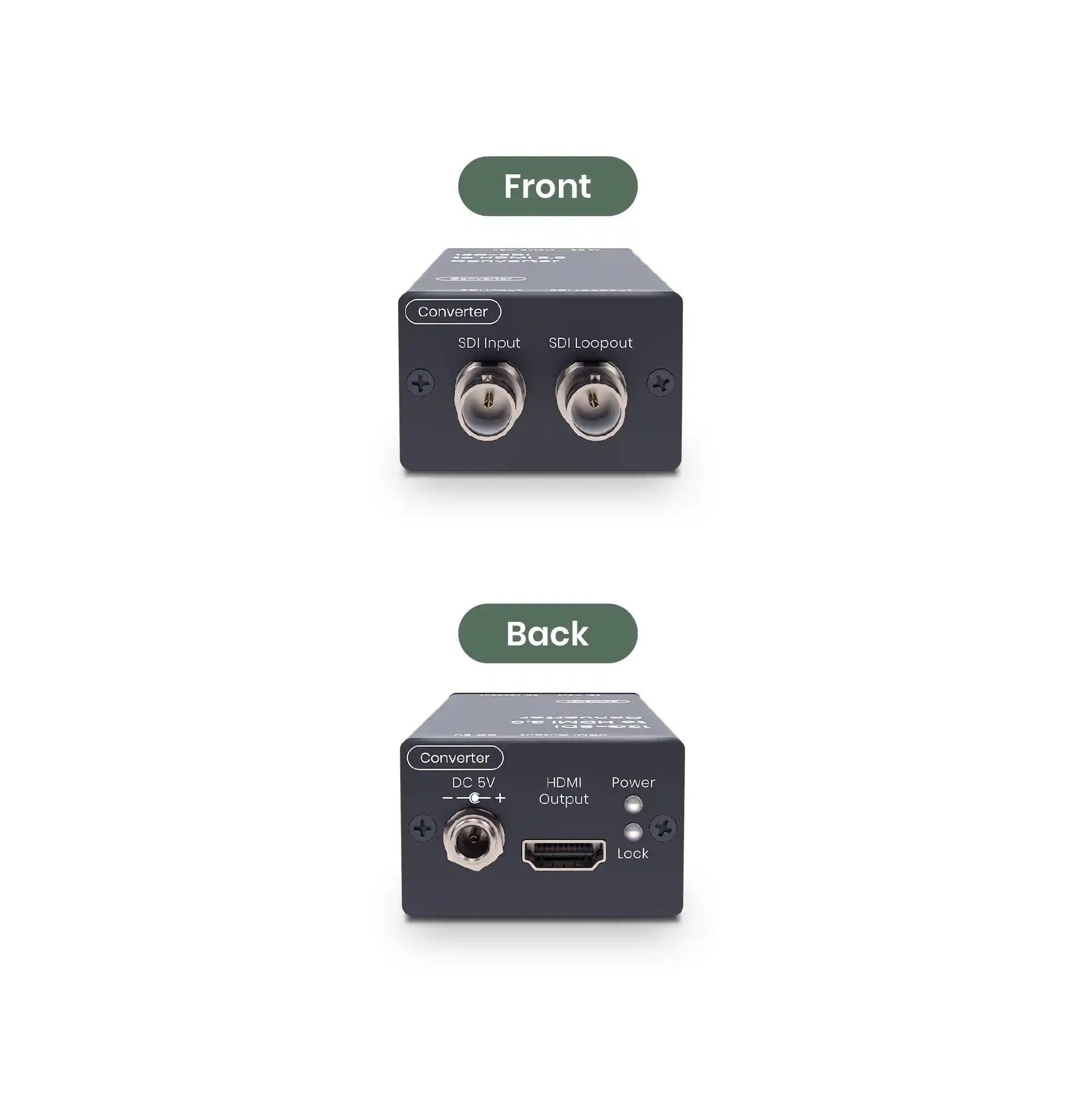

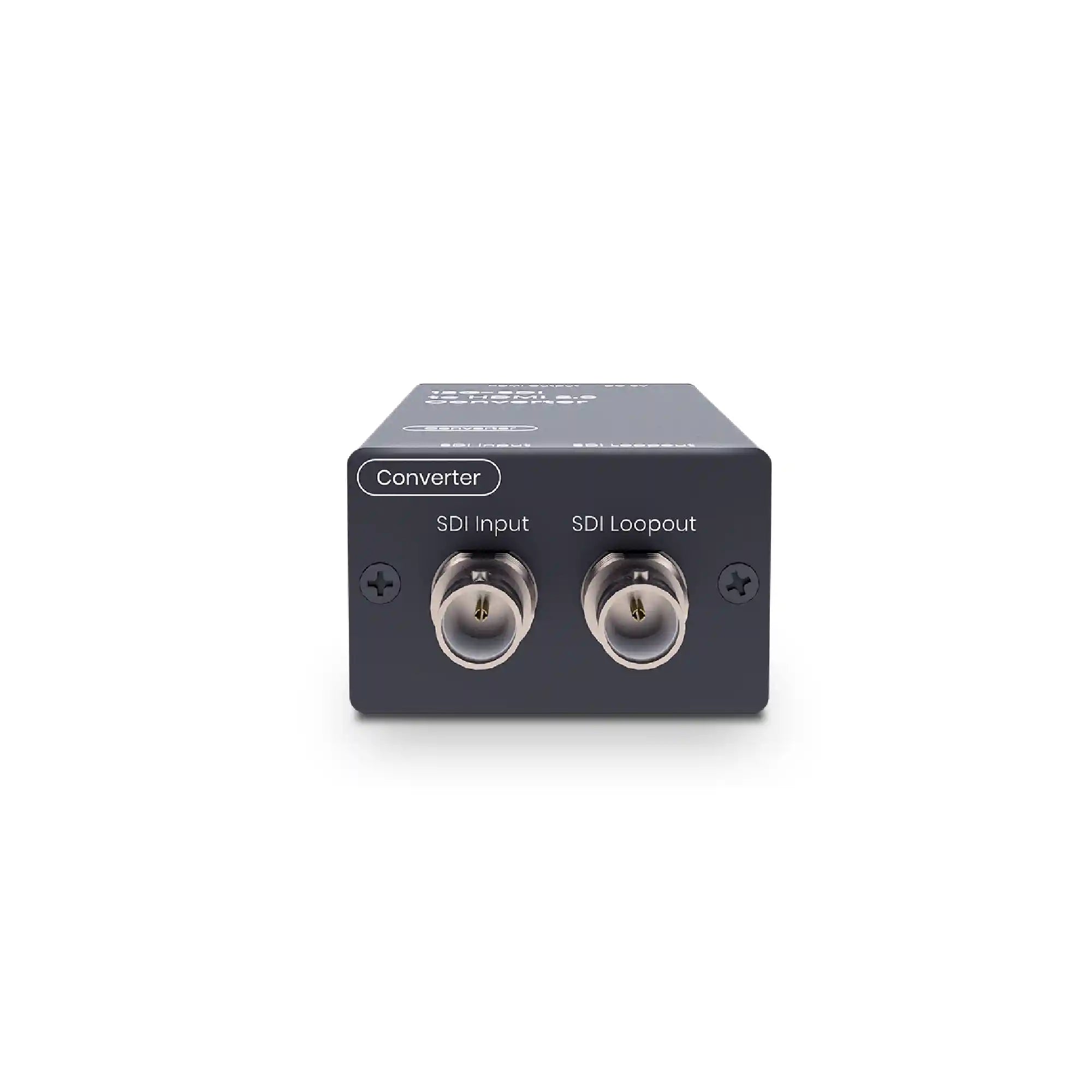

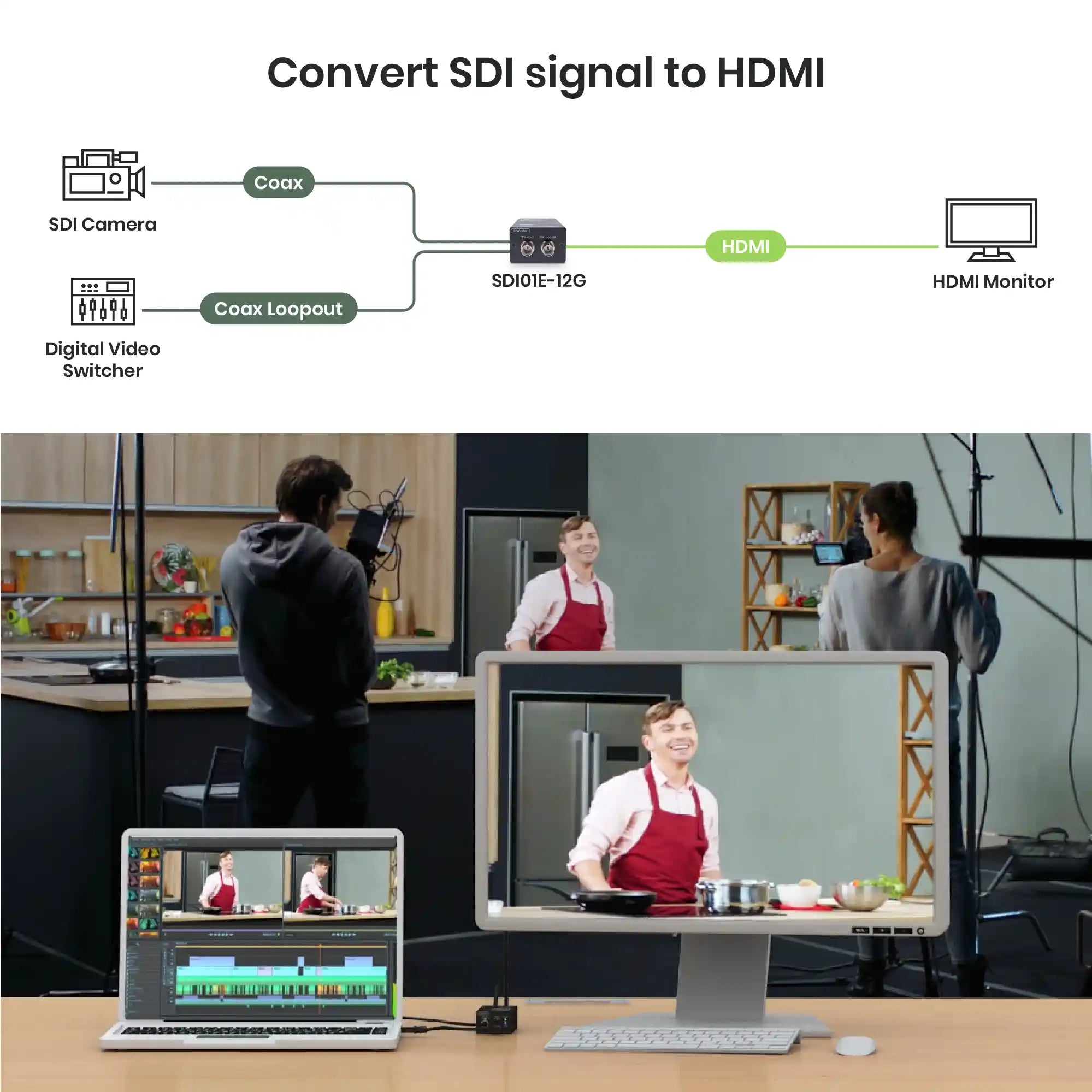

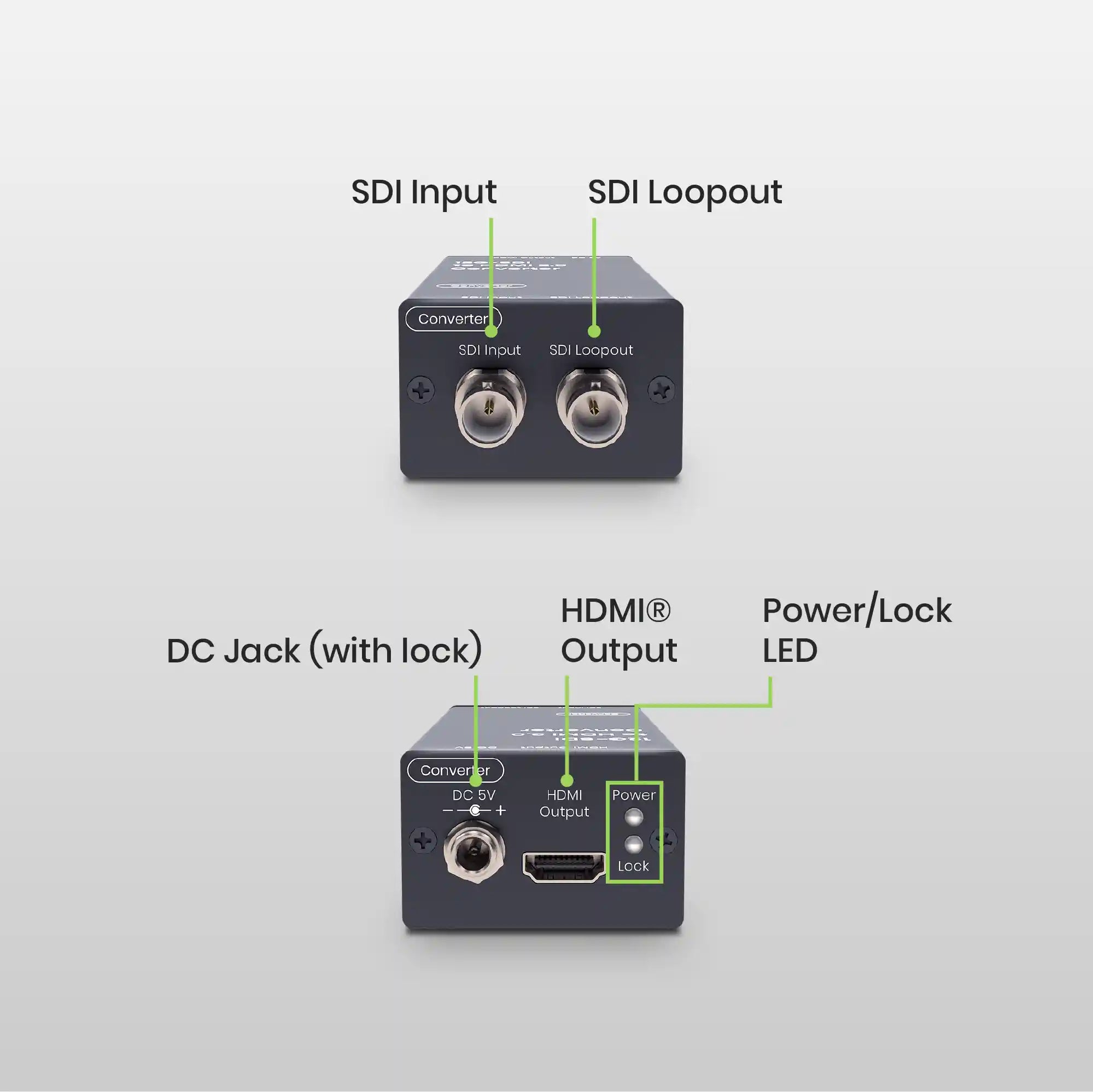

SDI01E-12G is a 12G-SDI to HDMI® 2.0 converter that allows you to monitor 12G-SDI video using a cost-effective HDMI® display. The new converter has a built-in SDI loop-out port to send the input SDI s
excl GST
ITEM NO.: SDI01E-12G | Compliance: SMPTE 259M, SMPTE 292M, SMPTE 424M | Max. Video Resolution: 12G-SDI, 4K@60Hz | Audio Format: Pass-Through | Video Input: 1 x (12G/6G/3G/HD)-SDI | Video Output: 1 x HDMI Type A | Video Loop-out: 1 x (12G/6G/3G/HD)-SDI | Power Supply: DC 5V 2A | Power Consumption: ＜5W | Operation: 0 to 55℃ | Storage: -40 to 85℃ | Humidity: Up to 95% | Dimensions: 50 x 93 x 32mm
- 2G-SDI input compatible with 6G/3G/HD
- HDMI® output resolution up to 4K@60Hz
- Power Input with locking design to prevent power interruption
- Small, compact and easy to install
- Multiple mounting options (Wall/Rack & Din-Rail)
