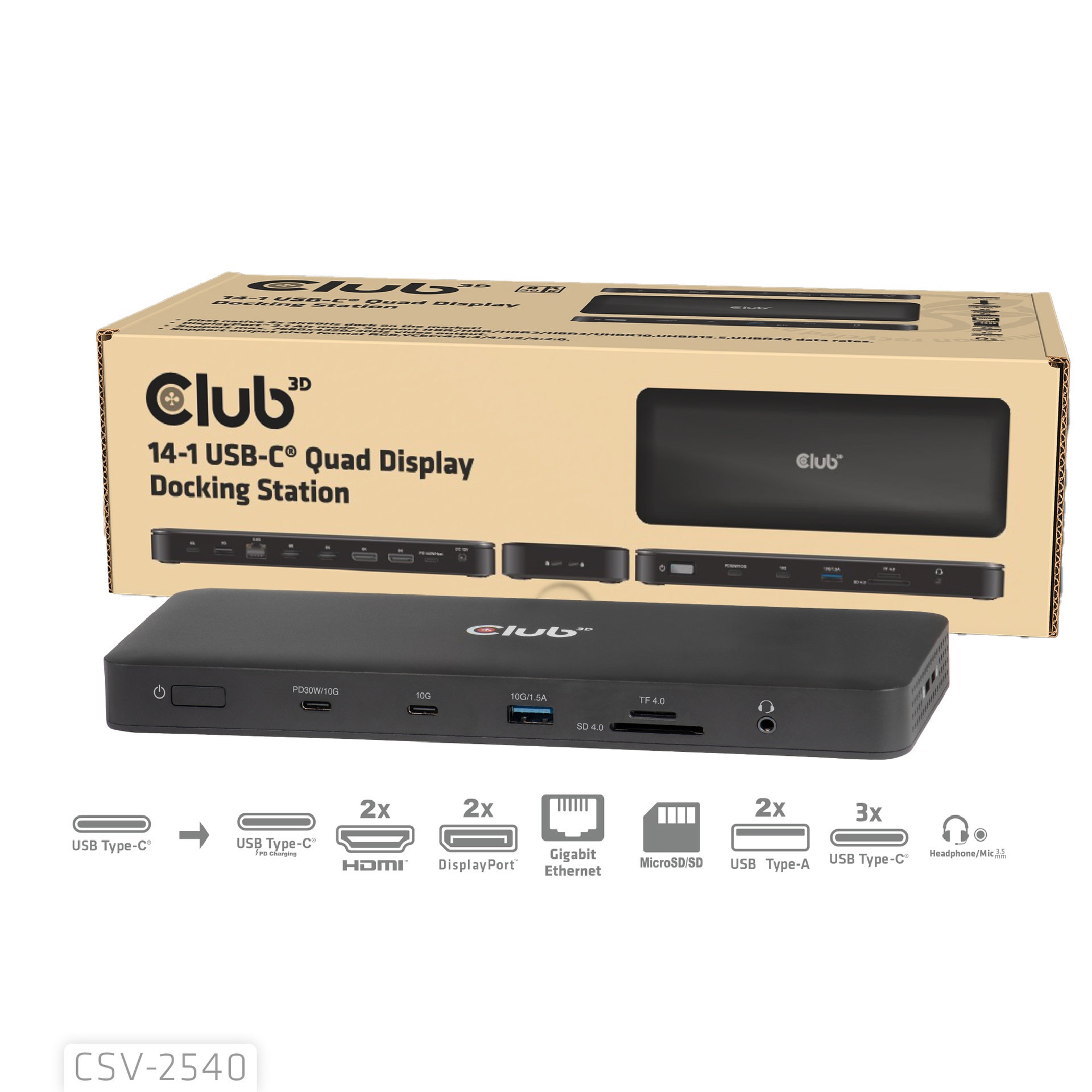

14-1 USB-C® Quad Display Docking Station

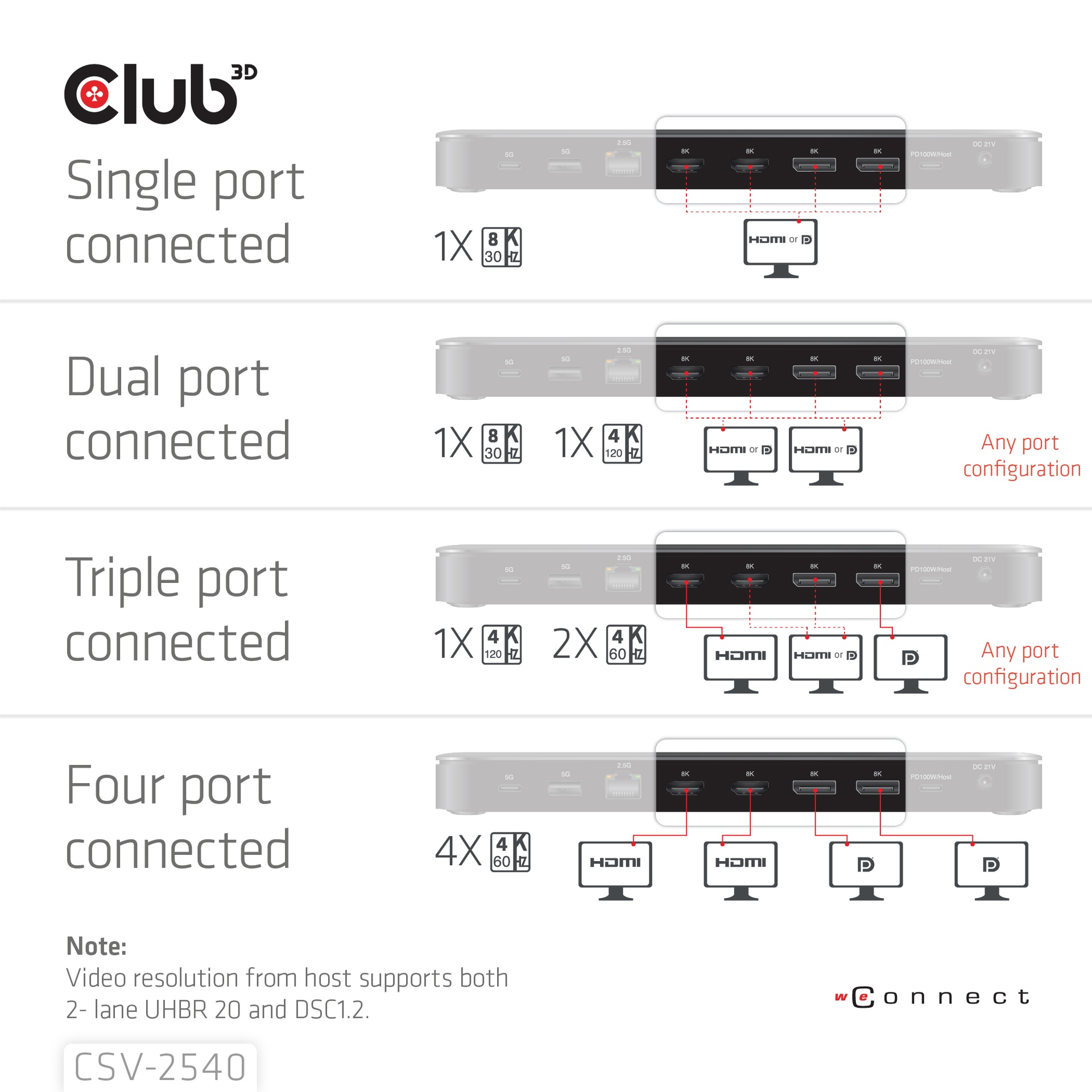

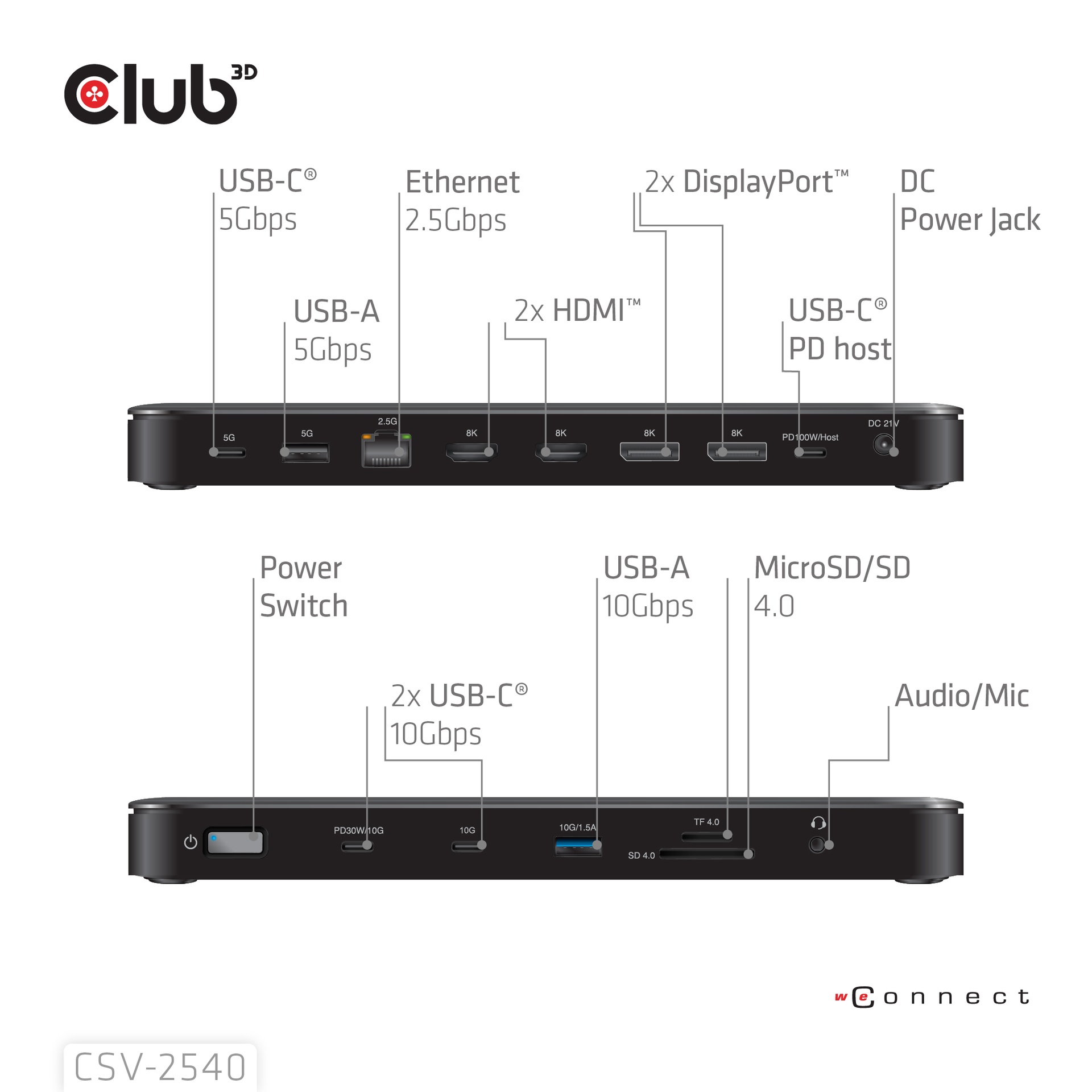

• CSV-2540 4x 4K60Hz Dock• DisplayPort™ 2.1 Alt mode. Support RBR/HBR/HBR2/HBR3/UHBR10, UHBR13.5, UHBR 20 data rates. • Support max. 7680×4320/30Hz video output. Pixel format RGB, YCbCr4:4:4/4:2:2/4:2:0. HDR10+ and HDCP V1.4/V2.3. • The USB-C® port close to the power switch supports max PD 30W (5V@3A,9V@3A,15@2A, 20V@1.5A) charging for USB-C® mobile phone and other devices. • USB-A 5Gbps has 900mA.The rest of the USB ports supports 1.5A downstream charging.• DisplayPort™ supports DP++ which enables to use a DP™ to HDMI™ adapters.• Power Switch & Power indicator LED.• Making full use of external 150W power, offering max 100W for connected PC/Laptop as well as max 30W downstream charging for connected USB-C® mobile devices.• Ultra-fast 2.5G speed supported, offering an even more seamless and responsive internet experience.• Widely Compatibility: compatible with all Thunderbolt™ and full-featured USB-C® laptops.
