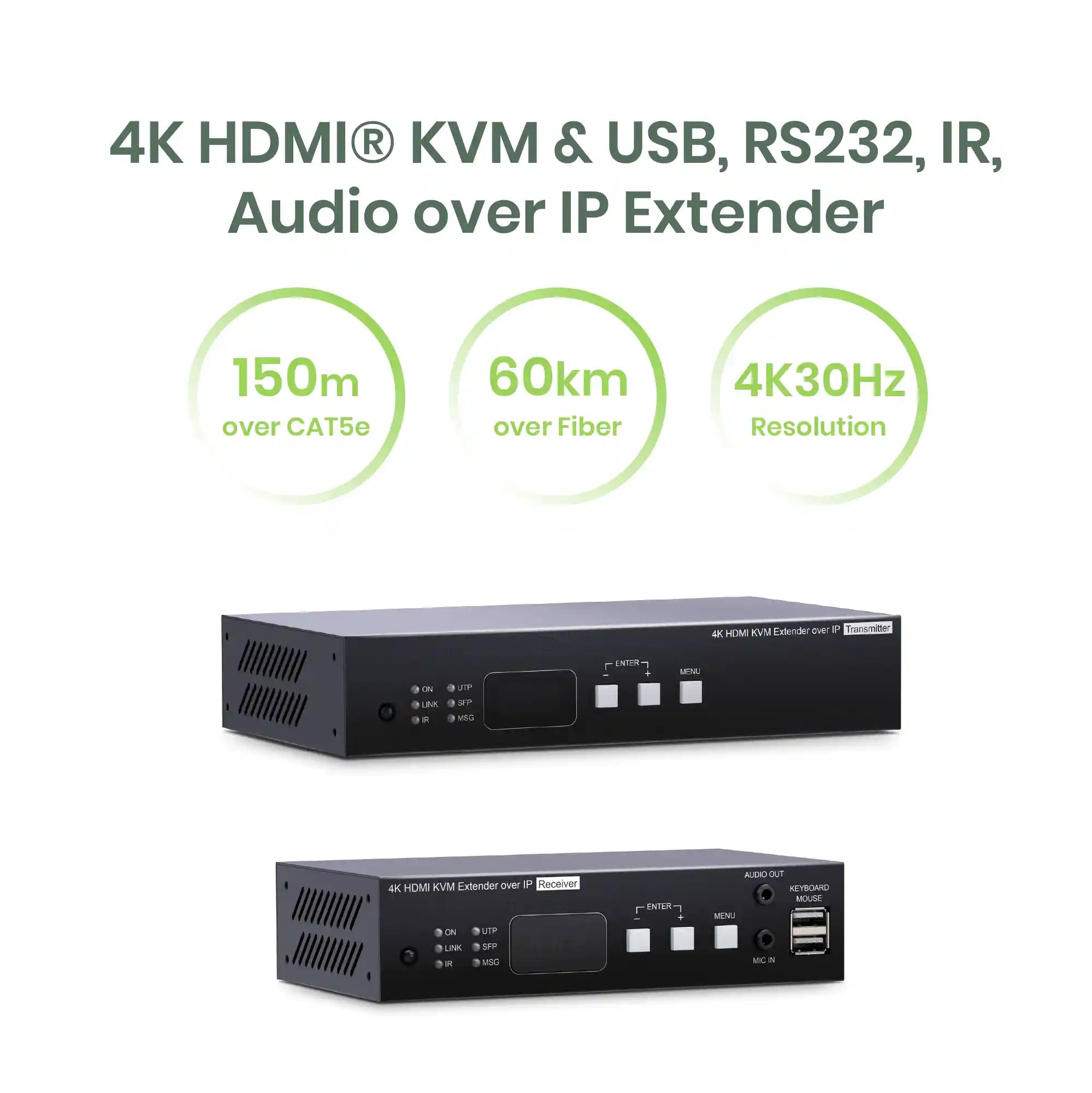

4K HDMI® POE KVM & USB, RS232, IR, Audio over IP Extender – TAA Compliant (TX & RX)
The SC&T HKM02B-4K6G POE 4K HDMI® KVM & USB, RS232, IR, Audio over IP Extender (HKM02B-4K) uses AV over IP technology to route up to 1,000 4K HDMI® sources to up to 60,000 displays over IGMP and Jumbo frame protocol.
excl GST
HKM02BP-4K6G: | Resolution: Bandwidth (Mbps) | 3840×2160(4K): 146~268 | 1920×1080 (1080p): 80~210 | 1280×720(720P): 112~177 | 1600×1200 (UXGA): 57~105 | 1280×1024 (SXGA): 79~150 | 1024×768(XGA): 72~120 | 800×600 (SVGA): 49~82 | 640×480 (VGA): 29~56 | ITEM NO.: HKM02BT-4K | Compliance: HDCP 2.2, USB 1.1, USB 2.0 | Max. Video Resolution: 4K@30Hz 4:4:4 | Max. Transmission Distance: 150M over CAT5e Cable or Greater | Audio Format: 7.1 LPCM 192kHz, Dolby True HD, DTS-HD Master Audio, ATMOS, DTS:X | IR Support: 20-60kHz , ±45°, 5M | Video Input: 1 x HDMI Type A | Video Output: 1 x RJ45 | Video Loop-out: 1 x HDMI Type A | Analog Audio Input: 1 x 3.5mm Stereo Phone Jack (Line In) | Analog Audio Output: 1 x 3.5mm Stereo Phone Jack (Line Out) | USB Interface: 1 x USB Type B (USB 2.0) | IR Interface: 1 x 3.5mm Stereo Phone Jack | RS232 Interface: 1 x DB9 Female | Link Interface: 1 x RJ45, 1 x SFP | Power Supply: DC 12V 1.5A | Power Consumption: 600mA | Operation: 0 to 55℃ | Storage: -20 ~ 85℃ | Humidity: Up to 95% | Dimensions: 210 x 123 x 40mm | Weight: 680g
