4K60Hz Compact HDMI® Fiber Extender 984ft/300m (TX & RX)

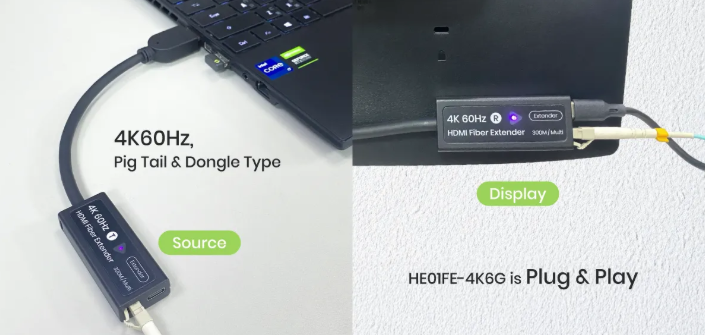

HE01FE-4K6G is an HDMI® over fiber optic extender kit (TX and RX) with an LC connector to transmit uncompressed 4K60Hz HDMI® signals. It supports EDID and HDCP pass-through over a single multi-mode fiber. (OM3 / OM4) Its small form and of solid build and easy installation.
excl GST

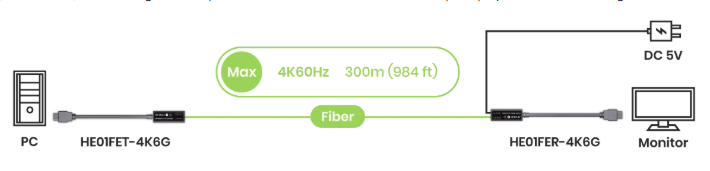

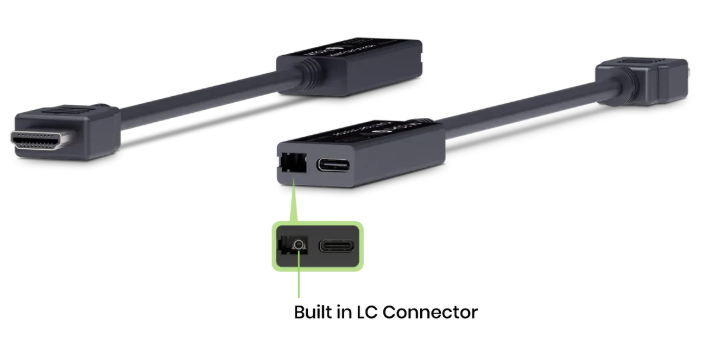

ITEM NO.: HE01FET-4K6G | Standard: HDMI® 2.0HDCP 2.2 | Max. Video Resolution: 4K60Hz 4:4:4 | Max. Transmission Distance: Multi-mode Fiber 300m | Wavelength: 850nm | Dynamic Range Standard: SDR, HDR, HDR10, HDR10+, Dolby Vision | Audio Format: PCM 2CH, 5.1CH, 7.1CHDolby True HD, Dolby Digital (AC-3), Dolby Digital Plus (E-AC-3), Dolby Atmos (AC4)DTS, DTS-HD Master Audio, DTS: X | Video Input: 1 x HDMI Type-A (Pig-tail) | Video Output: 1 x LC Fiber | Power Input: 1 x USB Type-C | Power Supply: 5V (USB Type-C) | Power Consumption: 0.70W | Power Saving: 0.15W | Operation: 0 to 55°C | Storage: -40 to 80℃ | The HE01FE-4K6G is an HDMI® over fiber optic extender with an LC connector to transmit uncompressed 4K60Hz HDMI® signals. It supports EDID and HDCP pass-through over multi-mode fibers. Its small, compact size and pigtail design allow for easier installation in any AV application.
