4K60Hz HDMI® Audio Extractor (HDMI/SPDIF/Stereo) with Dual-HDMI Outputs and Up/Down Scaler – TAA Compliant

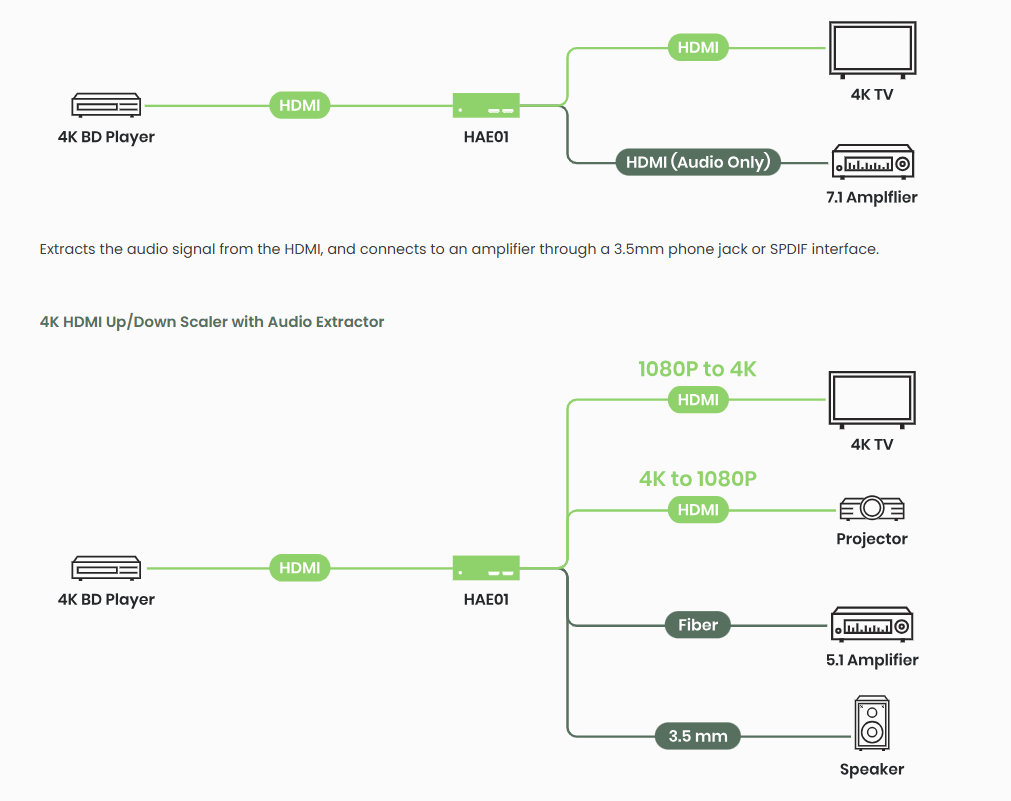

SKU: HAE01 HAE01 is an HDMI multifunctional tool allowing you to extract HDMI audio to integrate with external audio
equipment, such as amplifiers, AV receivers, etc. The video scaling function can up/down scale the
resolution from 1080p to 4K, or 4K to 1080p, saving cost on a new HDMI monitor. With the built-in 5-way
joystick switch, you can operate and setup all the functions in an easy way.

• Resolution up to 4K@60Hz 4:4:4.

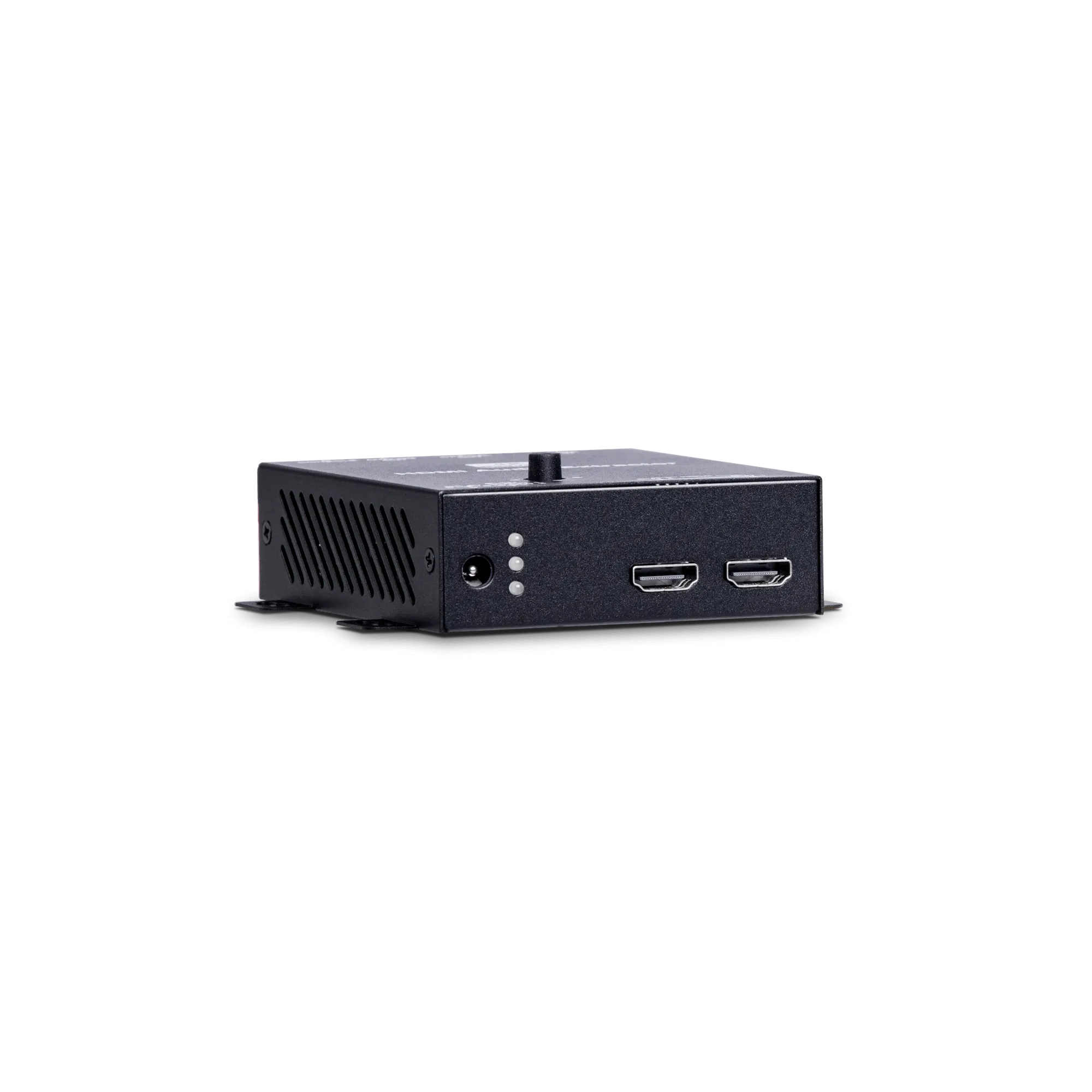

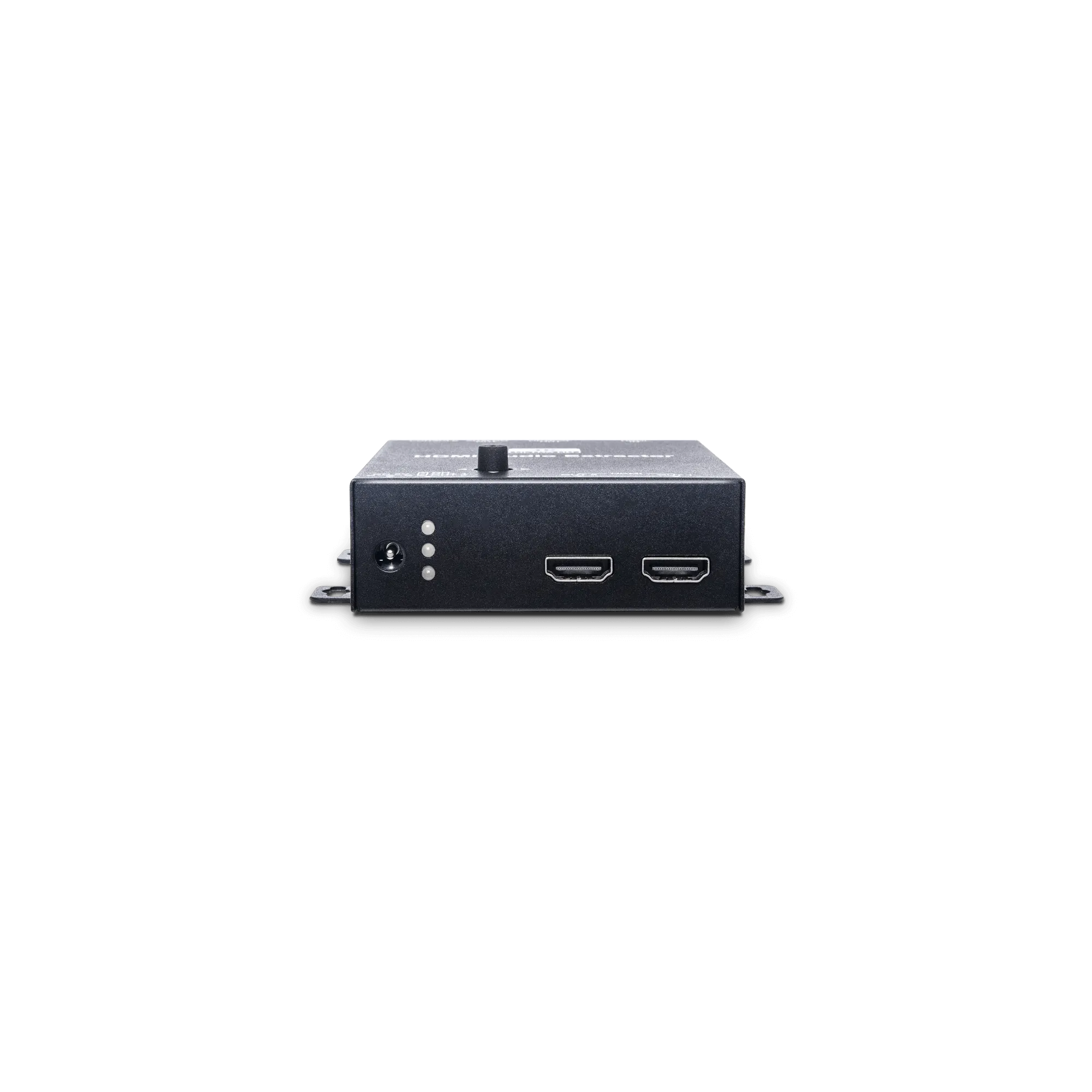

• Built-in dual HDMI outputs.

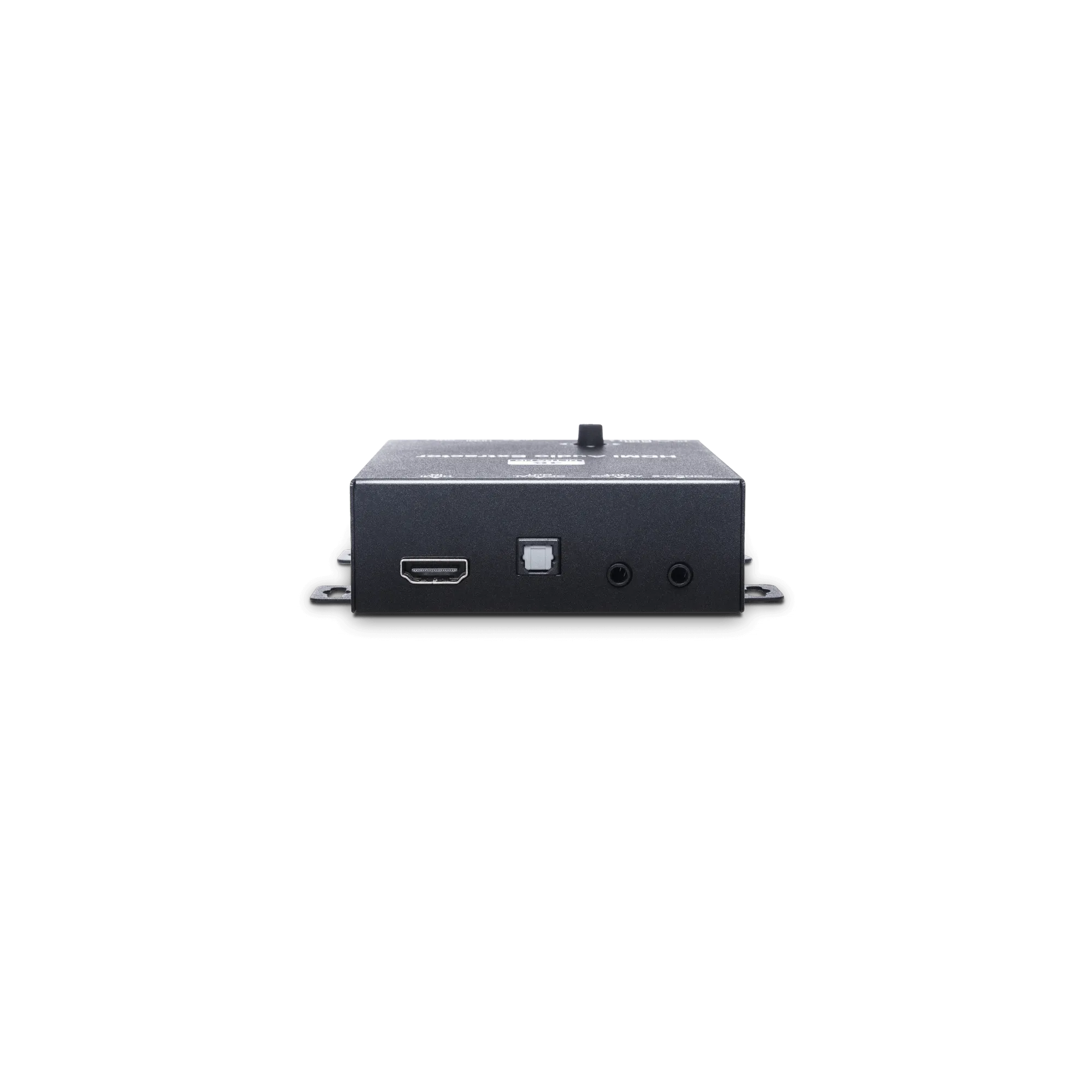

• Built-in Toslink (digital audio) and 3.5mm phone jack (analog audio) interfaces.
• Supports video up/down scaling function.
• Supports chroma resampling function, 4K HDMI 4:4:4/ 4:2:2 to 4:2:0 conversion.
• Supports HDCP 2.2 to 1.4 conversion.
• Supports HDMI audio extract for integrating with external audio equipment.
• Supports OSD menu to check functions & modes.
• Supports EDID management.
