4K60Hz HDMI® & USB/IR/RS232 KVM Fiber Optic Extender HDMI 2.0, HDCP 2.2, 3D, and HDR.
4K60Hz HDMI & USB/IR/RS232 KVM Fiber Optic Extender
- Resolution up to 4K@60Hz 4:4:4.
- Signal extension up to 60KM over fiber optic cable.
- Supports bi-directional IR, RS232, USB transmission (Send one at a time).
excl GST

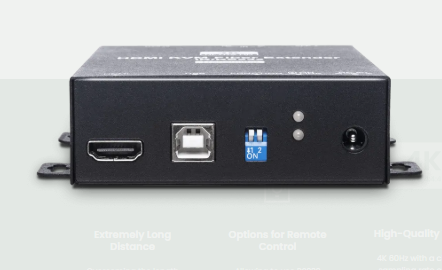

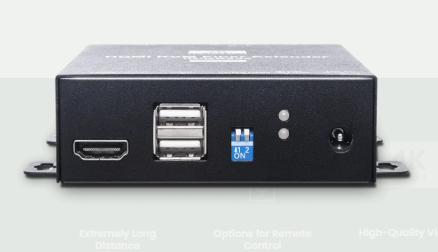

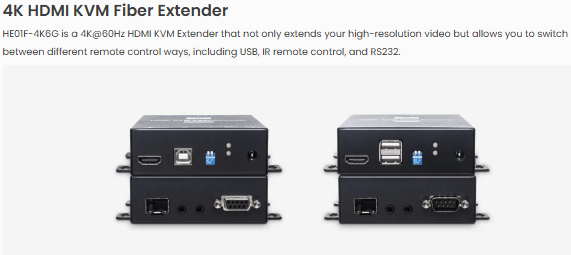

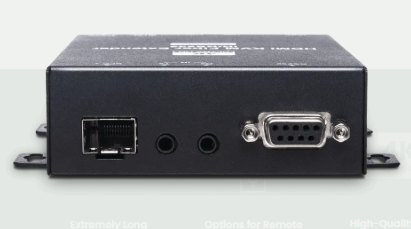

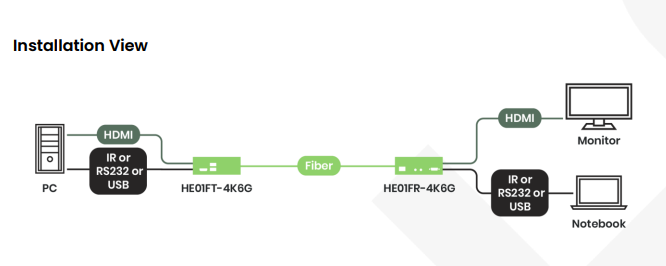

HE01F-4K6G is an HDMI extender that uses a multi-mode or single-mode SFP+ fiber optic cable to send 4K 60Hz HDMI with USB, RS232, or bi-directional IR signal, overcoming the length restriction of a standard HDMI cable to watch the video 60km away from the HDMI source. You can also use RS232 commands, IR remote, or keyboard & mouse to remotely control your PC/ DVR/NVR…etc. It’s an ideal solution for industrial, military, government,

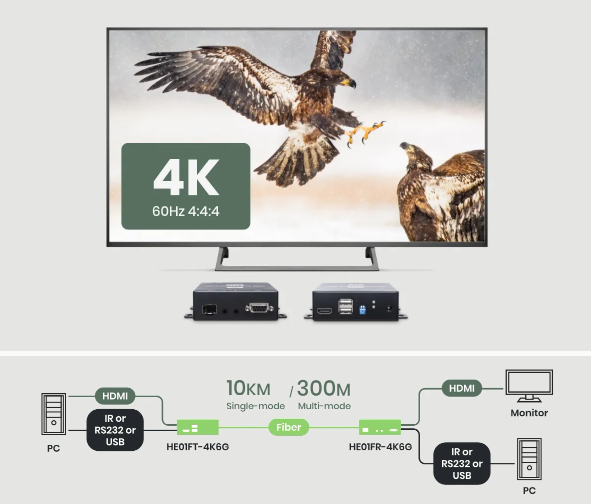

- Resolution up to 4K@60Hz 4:4:4 (18Gbps bandwidth).
- Supports HDMI 2.0, HDCP 2.2, 3D, and HDR.
- Signal extension up to 60KM over single-mode fiber optic cable.
- Signal extension up to 300M over multi-mode fiber optic cable.
- Supports full-duplex RS232 (115200bps), bi-directional IR (30~60KHz), and 2 ports of USB 2.0 for remote control (Send one at a time).
- Supports LPCM 7.1@192KHz, Dolby True HD, DTS-HD MA, ATMOS, DTS:X.
