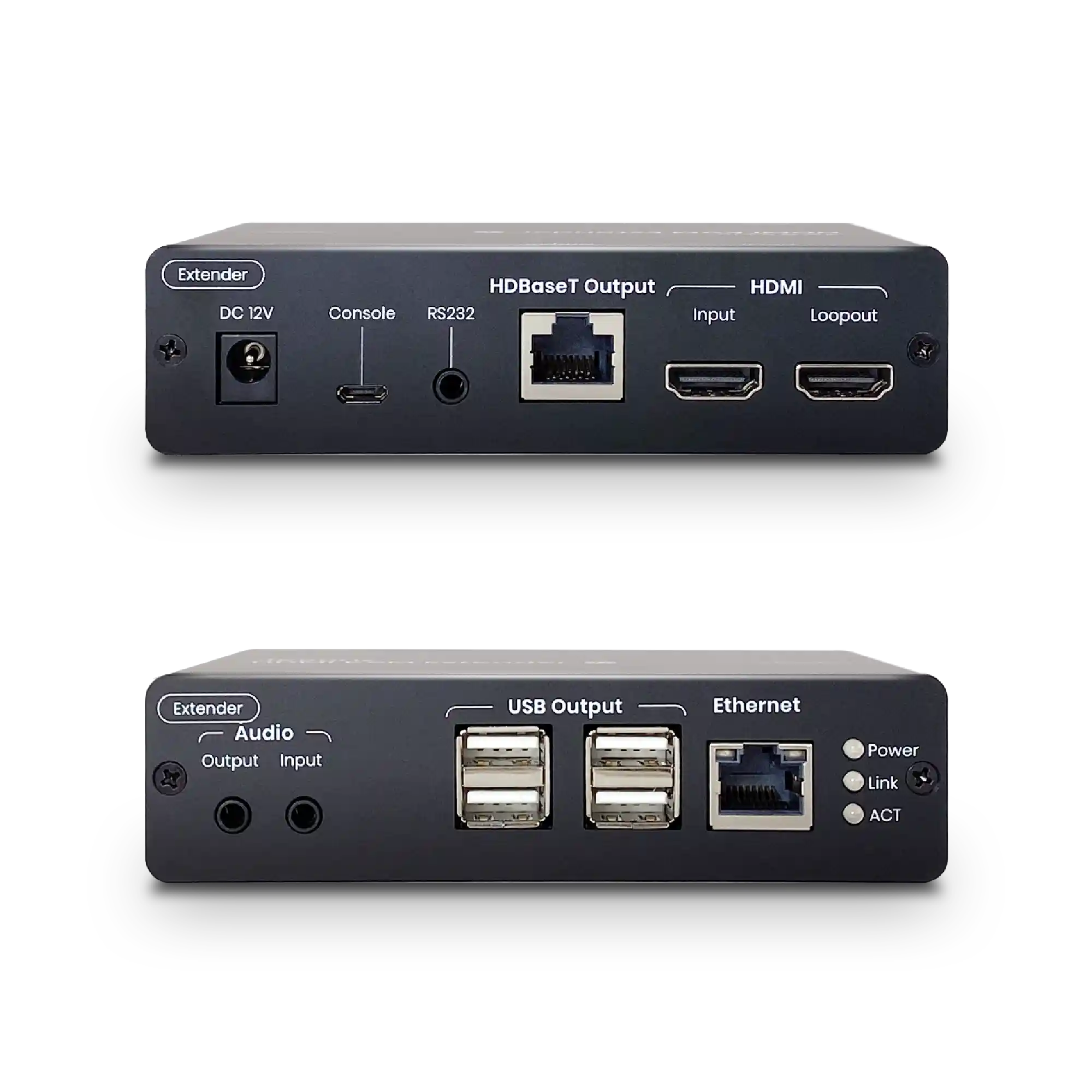

HDBaseT 3.0 4K HDMI® KVM Extender, 4K60Hz, TAA Compliant

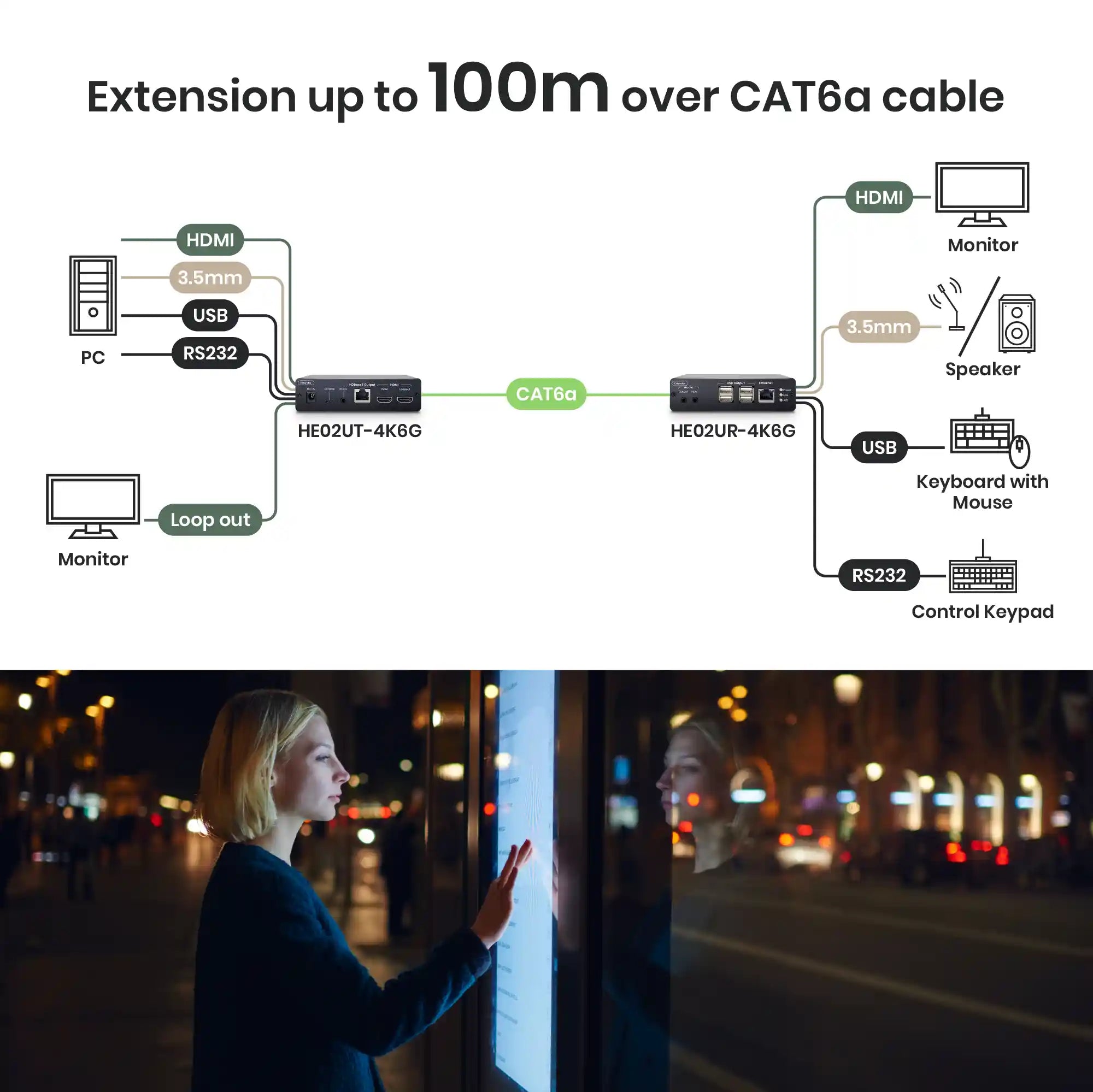

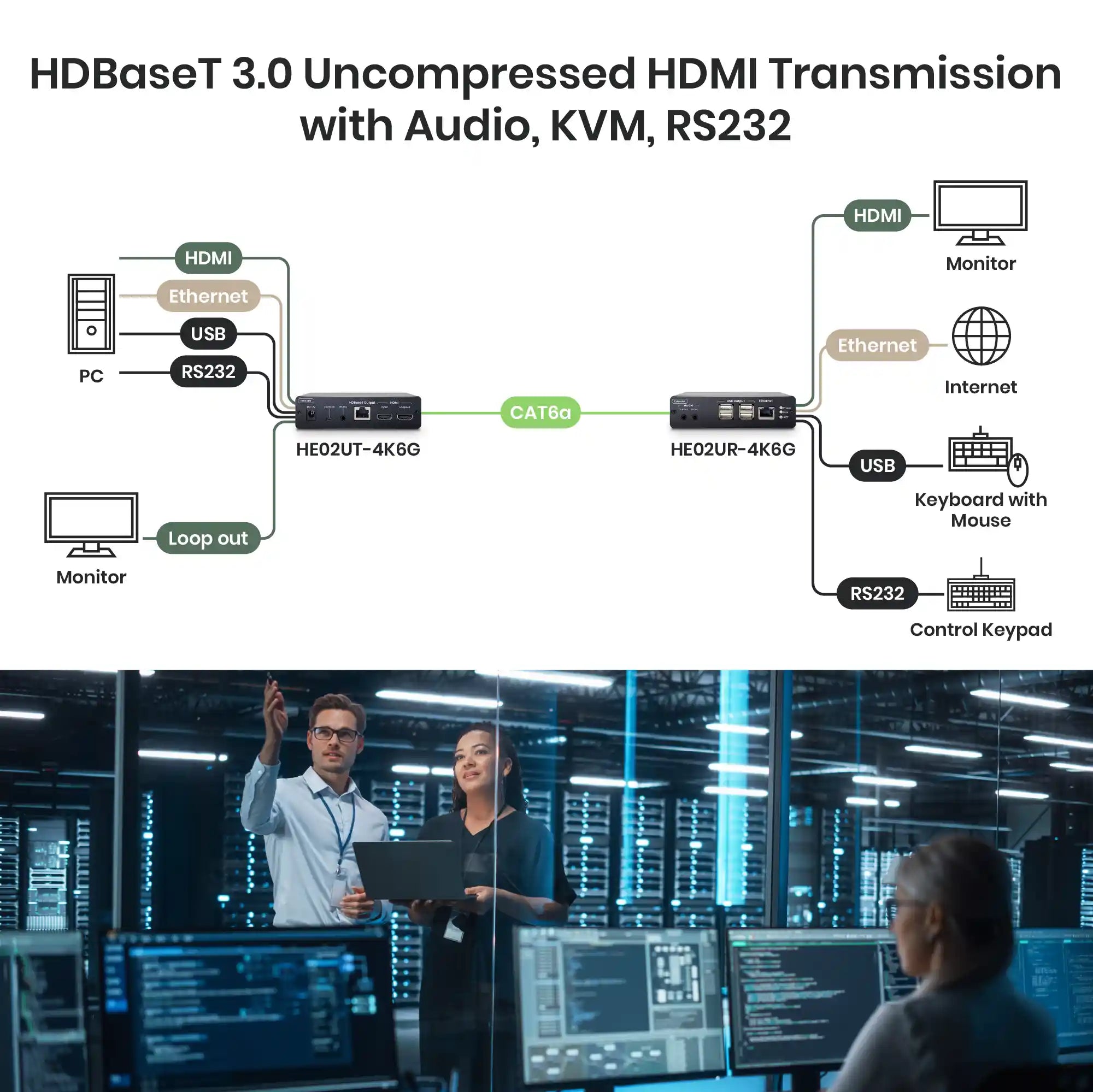

HE02U-4K6G is an HDMI over HDBaseT 3.0 Extender which is able to send uncompressed video, digital & analog audio, RS232 signals, with resolution up to 4K@60Hz 4:4:4 and transmission distance up to 100
excl GST

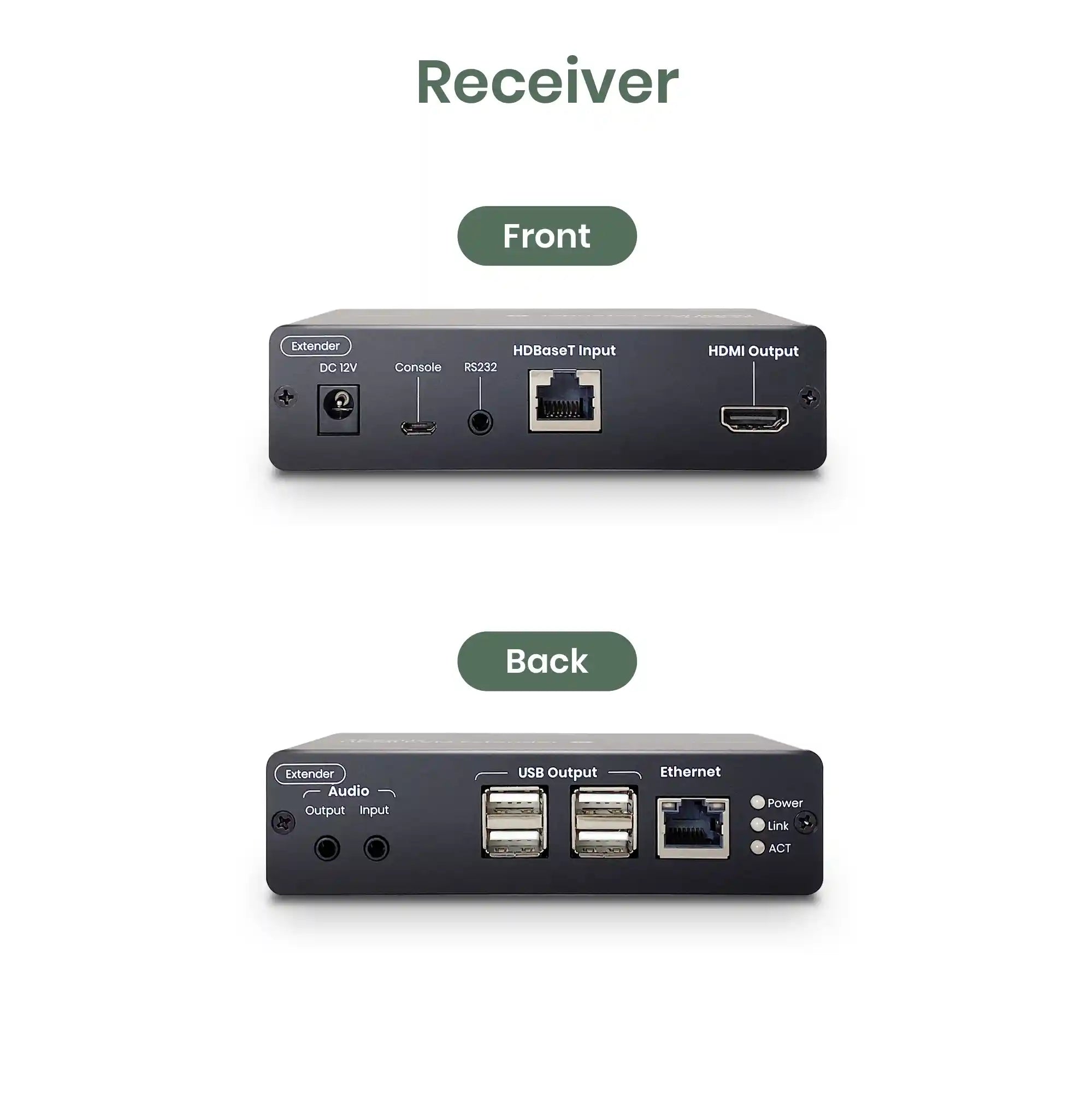

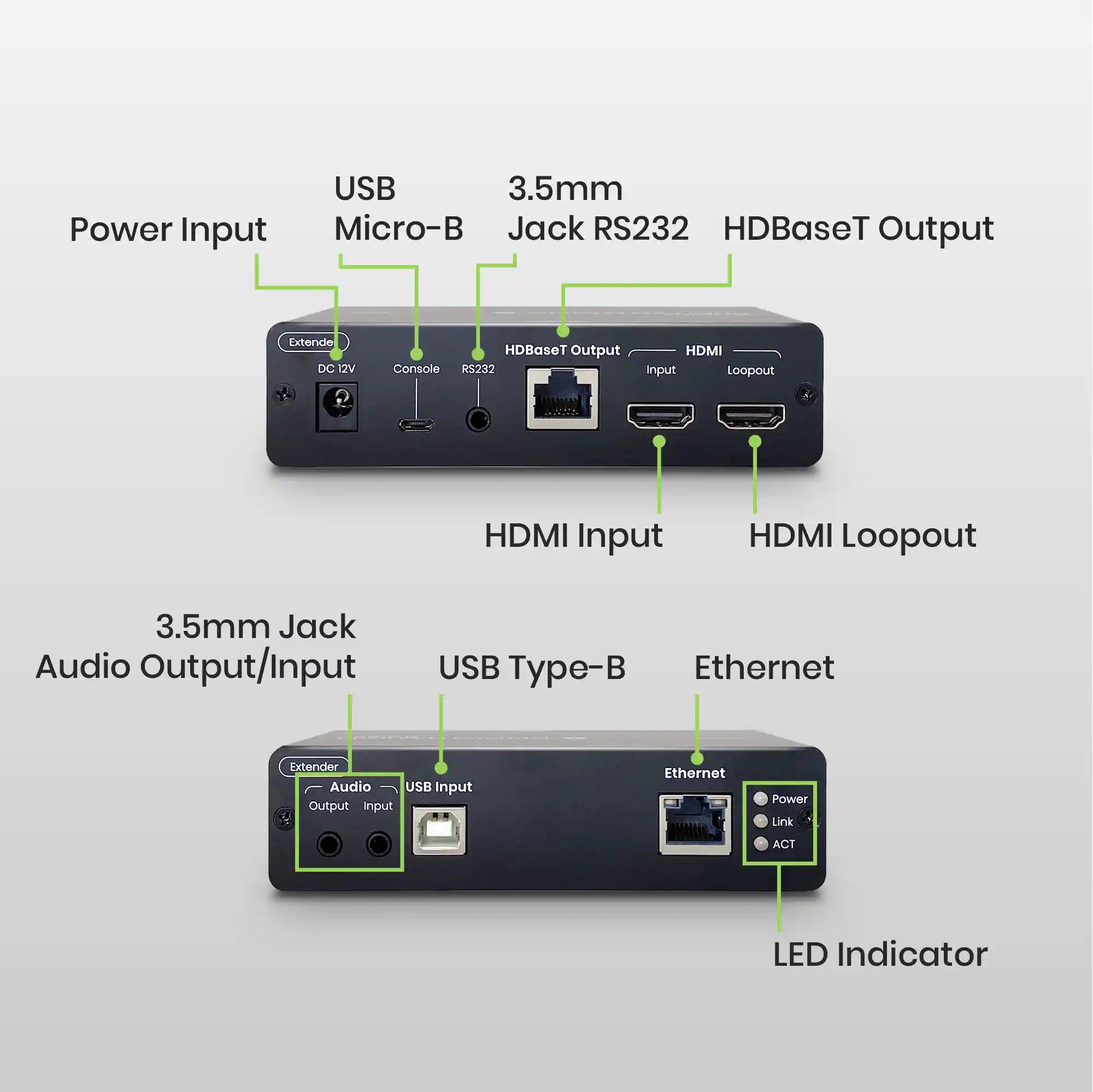

ITEM NO.: HE02UT-4K6G | Compliance: HDMI 2.0, HDCP 1.4/2.2, USB 2.0 | Max. Video Resolution: 4K@60Hz 4:4:4 | RS-232 Baud Rate: 115200 bps/ Full duplex | Video Input: 1 x HDMI | Video Output: 1 x HDBaseT1 x HDMI (loopout) | Audio Input: 1 x 3.5mm Phone Jack | Audio Output: 1 x 3.5mm Phone Jack | USB Connector: 1 x USB Type-B | RS232 Interface: 1 x (3.5mm) Phone Jack | Console (Firmware Upgrade): 1 x USB Micro-B | LED Indicators: 3-LED Status: Power/Link/ACT | Power Supply: 12V 1.5A | Power Consumption: <6W | Operation: 0 to 45℃ | Storage: -40 to 80℃ | Operating Altitude: 2000m | Humidity: Up to 95% | Dimensions: 125 x 123 x 32mm | Weight: 363g
