Long Reach PoE Extender over Coax Kit (TX & RX) – TAA Compliant
The IP09CPK is a pair of Ethernet-to-Coax adapters supporting Poe, which converts power and data and transmits them over a coaxial cable with up to 90W of power.
excl GST
The IP09CPK is a pair of Ethernet-to-Coax adapters supporting PoE, which converts power and data and transmits them over a coaxial cable with up to 90W of power to support high-consumption PoE devices. Compatible with IEEE 802.3af/at/bt standards, this extender simplifies the transition from analog to PoE CCTV systems, allowing you to upgrade without replacing existing coaxial cables.

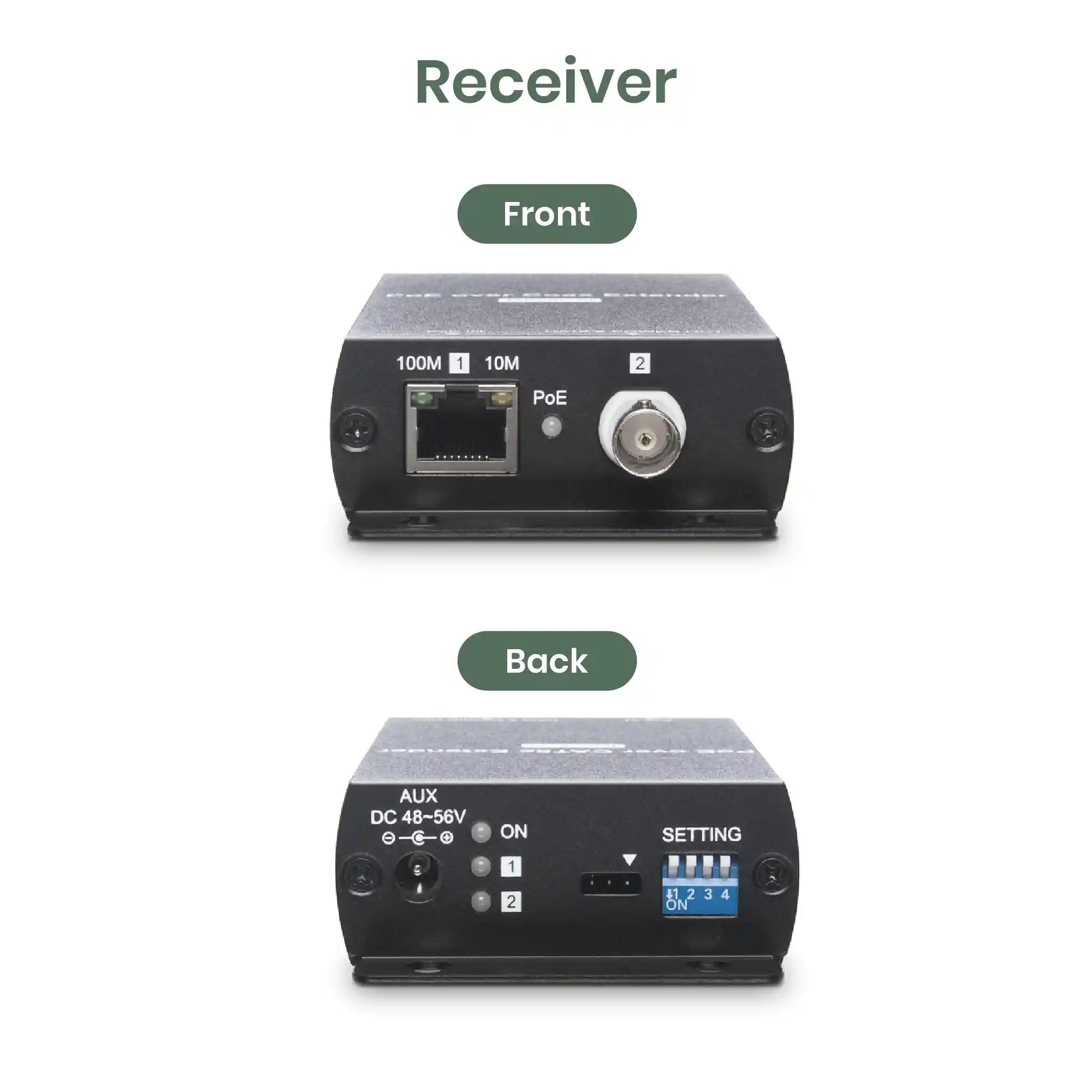

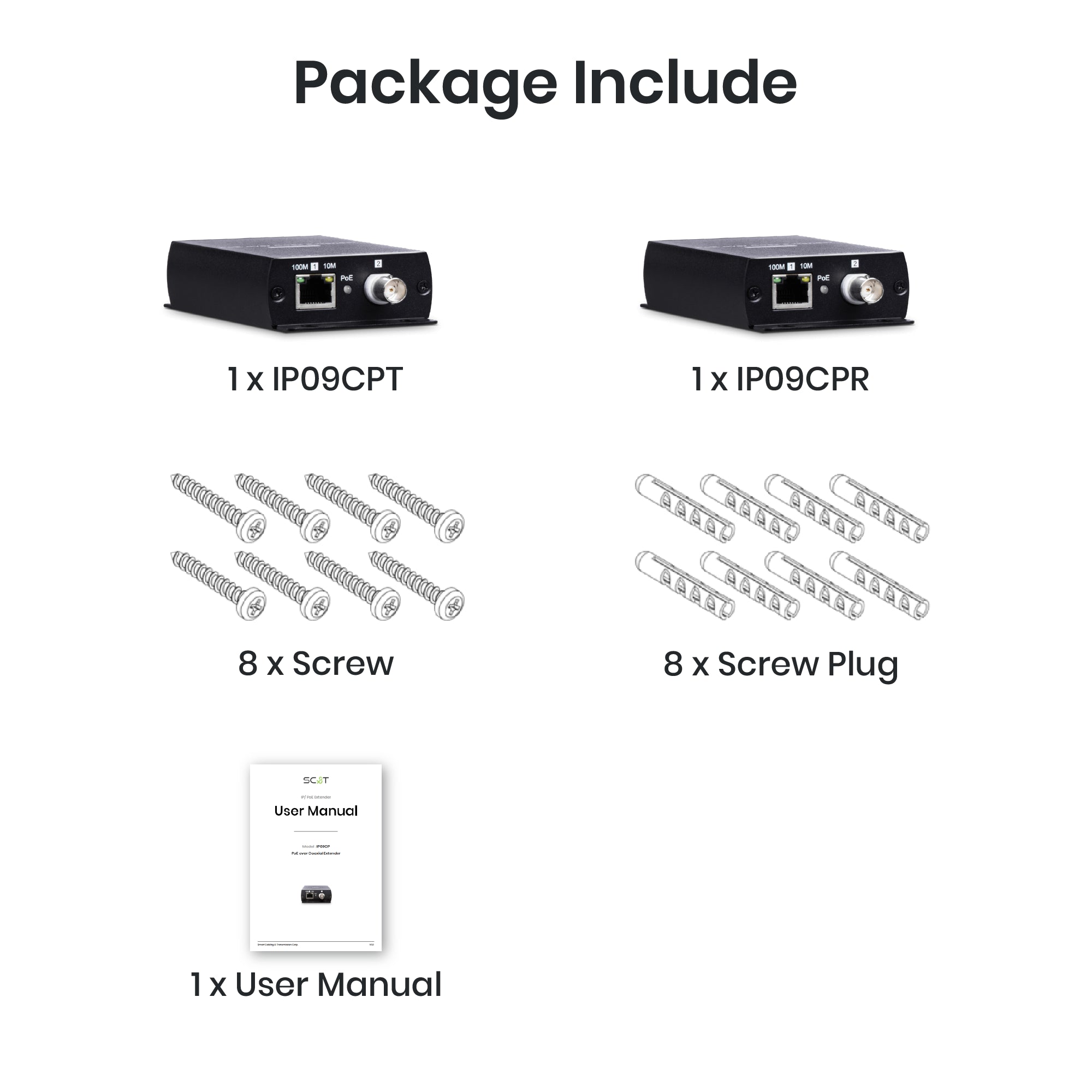

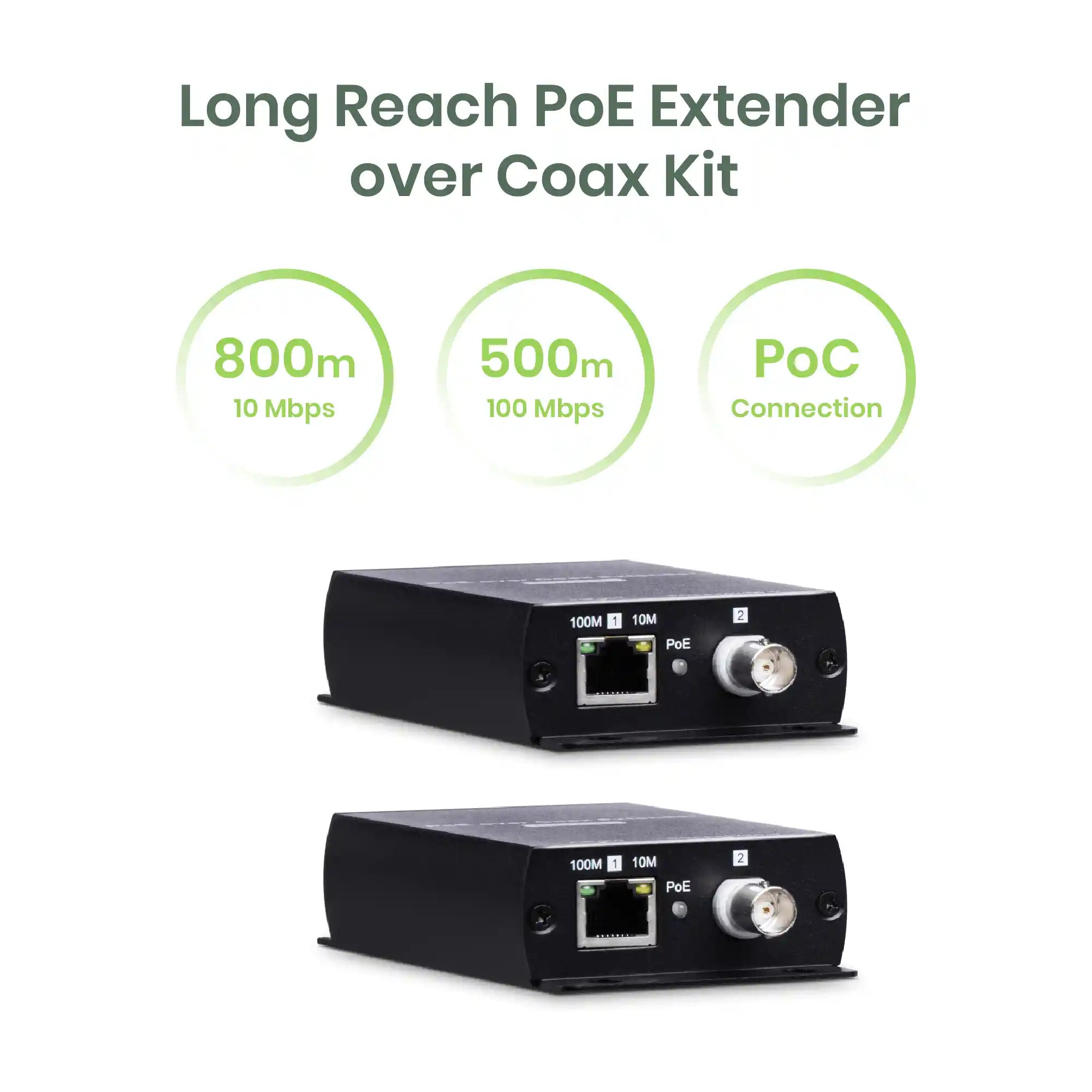

Each IP09CPK kit includes two IP09CP units, which are installed at either end of your equipment. This setup allows network signals to travel up to 3,280 feet (1,000 meters) over a coaxial cable, far exceeding the typical 328 feet (100 meters) limitation of standard Ethernet cables. The transmission speed is up to 100Mbps within 1,640 feet (500 meters), and 10Mbps beyond that range.
The IP09 series extends IP/PoE signals over Ethernet cables for installations where coaxial cables are not required. Explore this cost-effective alternative to find the best fit for your project needs.
- Extends PoE signal over a coaxial cable.

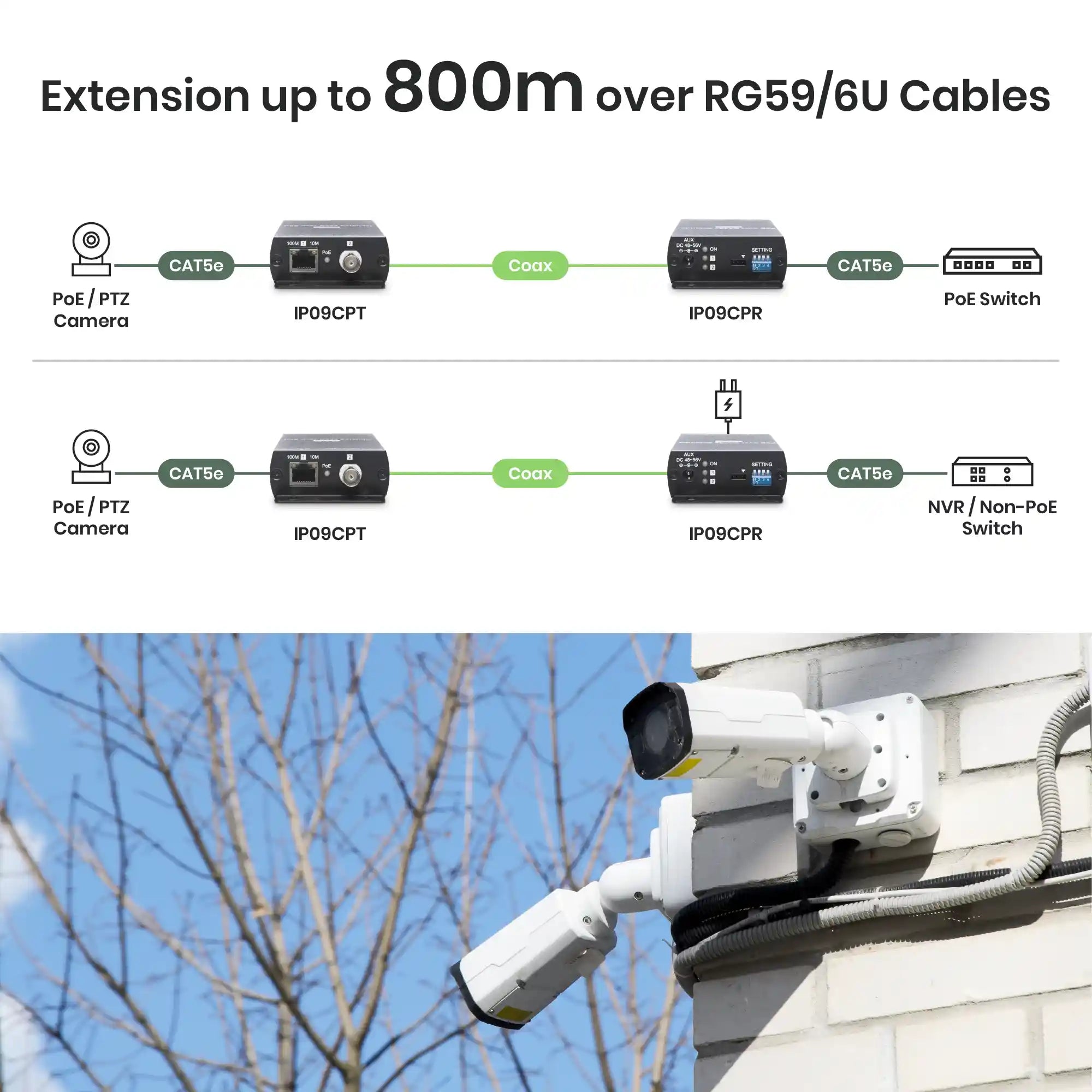

- Signal extension up to 1000M over RG59/ 6U coaxial cable.
- Provides up to 90W power for remote PoE device.
- Power source from either a PoE switch or an external power adapter.
- Bandwidth up to 100Mbps.
- TAA-compliant for government procurement.
