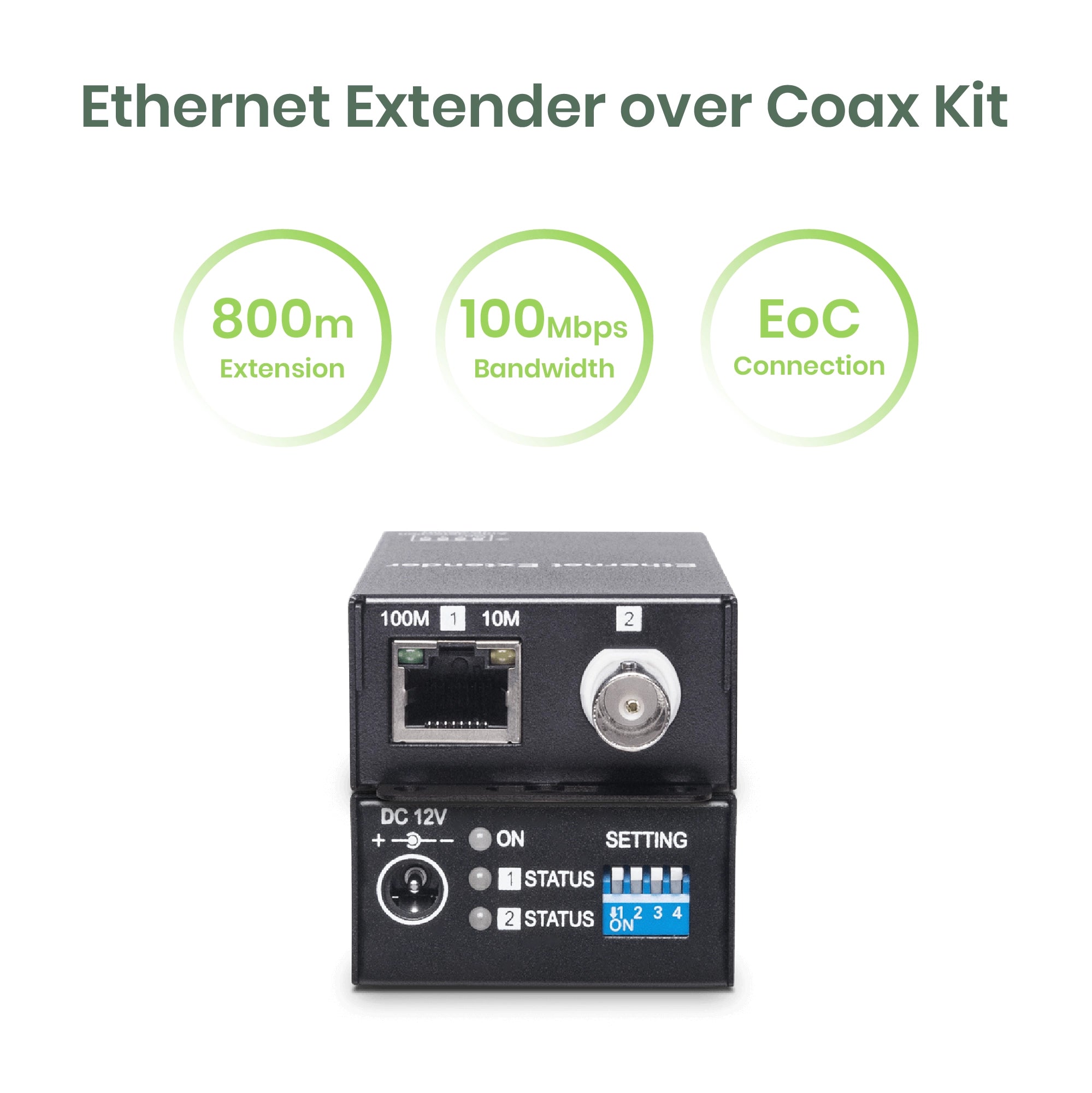

SCT Ethernet over Coax Adapter Kit 10/100Mbps 3280ft – TAA Compliant

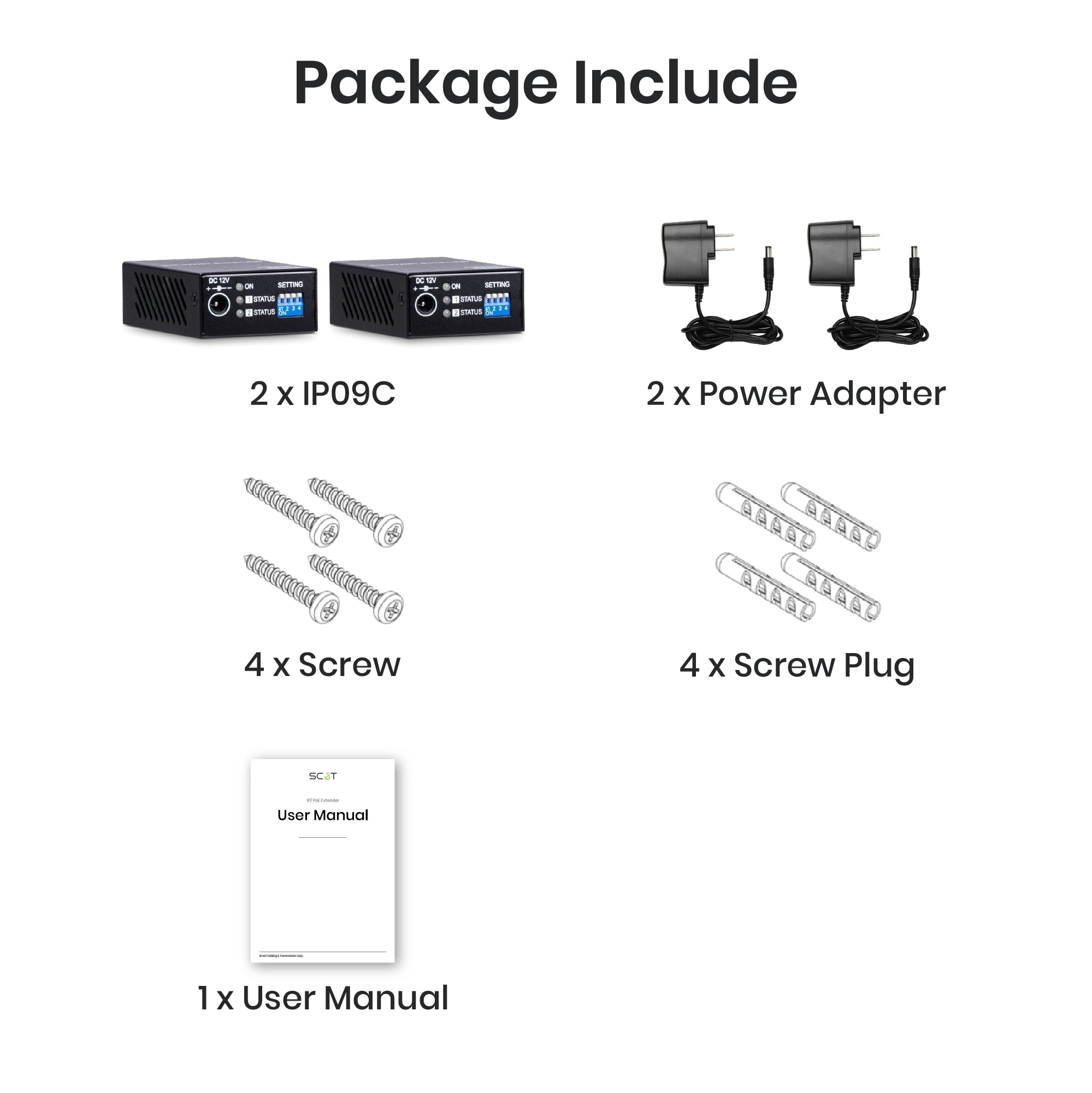

The IP09CK is a pair of Ethernet-to-Coax adapters designed to convert Ethernet signals for transmission over existing coaxial cables and back to Ethernet devices. Each IP09CK kit includes two IP09C units,
excl GST

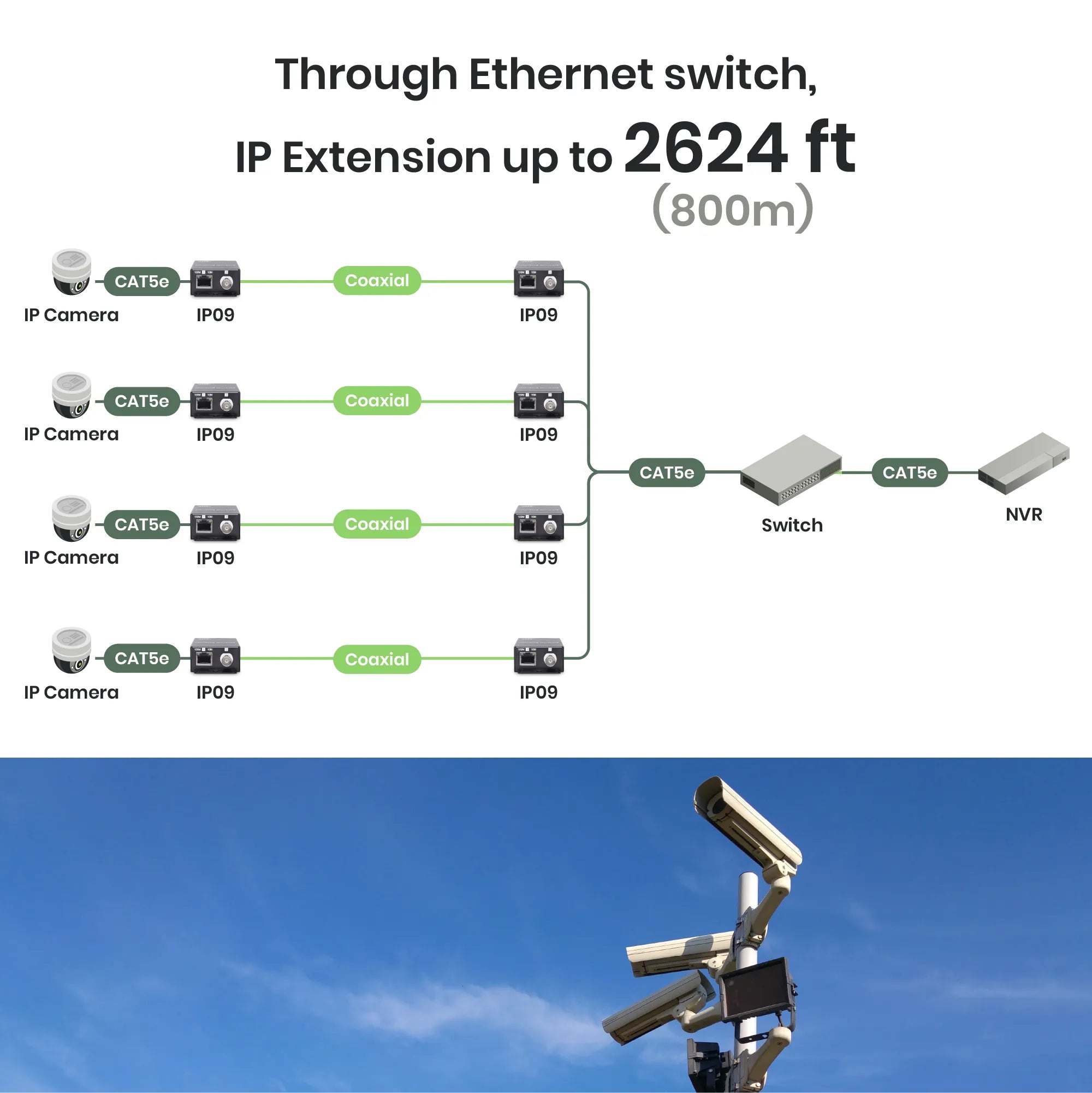

The IP09CK is a pair of Ethernet-to-Coax adapters designed to convert Ethernet signals for transmission over coaxial cables and back to Ethernet devices. Each IP09CK kit includes two IP09C units, which are installed at either end of your equipment. This setup allows network signals to travel up to 2,624 feet (800 meters) over coaxial cables, far exceeding the typical 328 feet (100 meters) limitation of standard Ethernet cables. The transmission speed is up to 100Mbps within 1,640 feet (500 meters), and 10Mbps beyond that range.
By using coaxial cables, the IP09CK enables you to repurpose existing coaxial infrastructure for network equipment, saving significant costs on cable replacement, as well as labor and installation time.
- Transmits IP signals up to 1640ft at 100Mbps or 2624ft at 10Mbps over a coaxial cable.
- Data rate supports up to 100Mbps.
- Built-in 1.5KV (Line to Line) surge protection.
- Supports Auto MDI/MDI-X and full/ half duplex mode.
- Supports EEE (Energy Efficient Ethernet) mode.
Durable aluminum casing. - Compatible with IP cameras, NVRs, industrial controllers, wireless access points, VoIP phones, point-of-sale systems, Ethernet switches, and other network devices.
- Ensure the required transmission rate is sufficient before use.
- TAA-compliant for government procurement.
