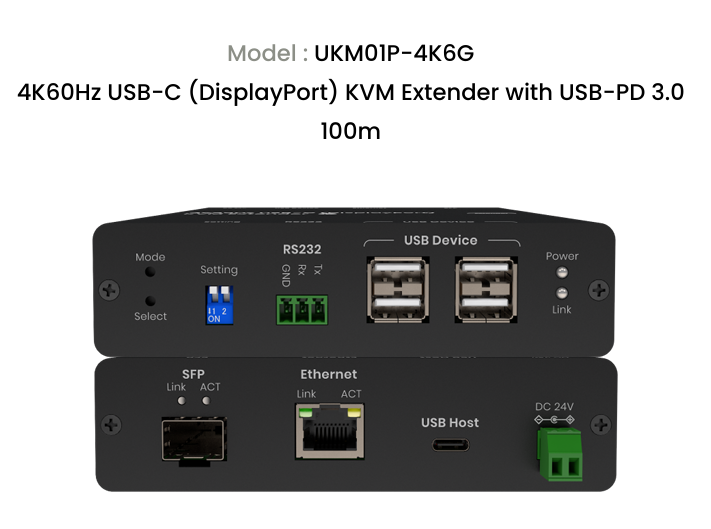

UKM01P-4K6G 4K60Hz USB-C (DisplayPort 1.2) KVM Extender with USB-PD 3.0 100m + (TX & RX) > 10 KMTR Fiber TAA Compliant
UKM01P-4K6G is a 4K60Hz USB Type-C KVM extender that uses a cost-effective Ethernet cable to send audiovisual, USB, and power signals (Available Q1 2026) Max resolution is 4K60 4:4:4 (3840×2160 @ 60Hz)
- DP 1.2 compliance
- PD 3.0
- USB 2.0
- 4K60 4:4:4 transport
- 100–160 m CAT5e/CAT6 extension
- 10 KMTR + SFP Fiber
- TAA Compliant
excl GST

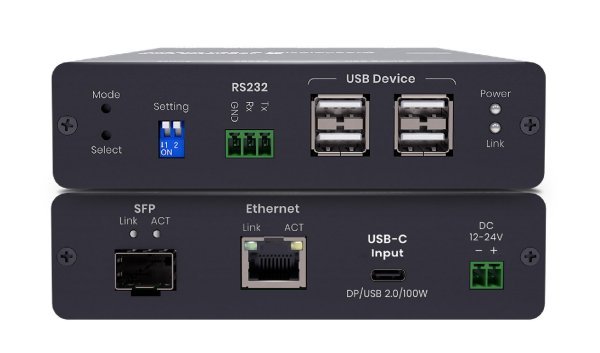

UKM01P-4K6G is a 4K60Hz USB Type-C KVM extender that uses a cost-effective Ethernet cable to send audiovisual, USB, and power signals with transmission distance up to 100 meters. Both transmitter and receiver units have a USB Type-C port which can carry audiovisual, USB and power delivery data. The KVM extender can perfectly apply to the broadcasting system, digital signage, industrial control…etc.
Swift Sync is a high-efficiency HDMI® transmission technology that offers a cost-effective alternative to uncompressed HD Base T. With advanced 1G compression, it supports 4K@60Hz and keeps latency under 2 frames (0.03 seconds) —near real-time with no visible delay. Watch our test video to see latency and image quality in action.

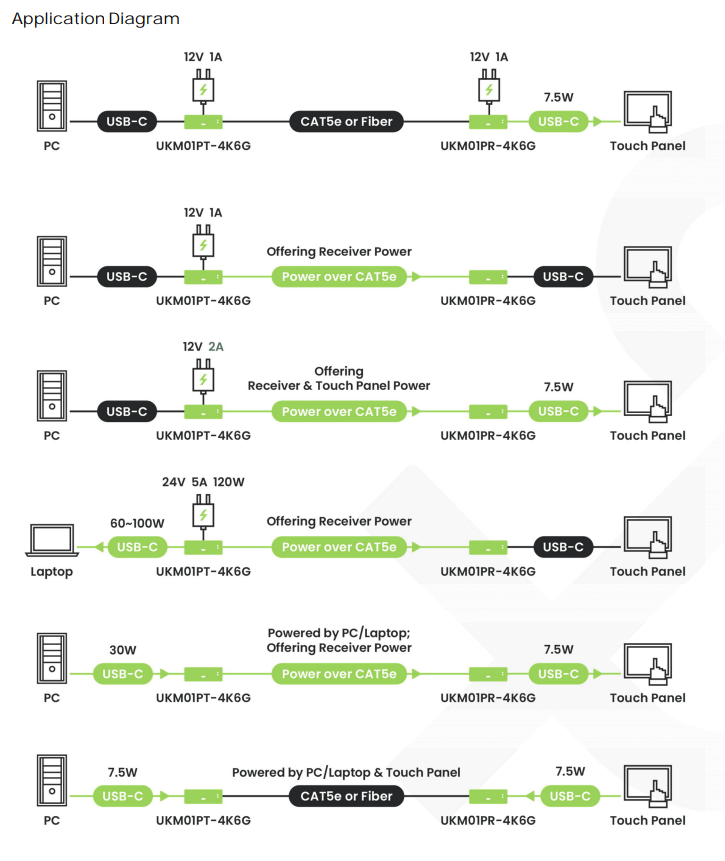

Perfect for USB‑C displays, webcams, keyboards, mice, and general KVM workflows. Solid transmission over distance copper or optics.
KVM extender designed for:
- Keyboard/mouse, Touch, Basic HID Light USB‑C device control, Hi res
Not intended for:
- USB 3.x webcams, Capture cards, High‑bandwidth USB storage Any 5–10 Gbps USB‑C data applications
- TAA Compliant
