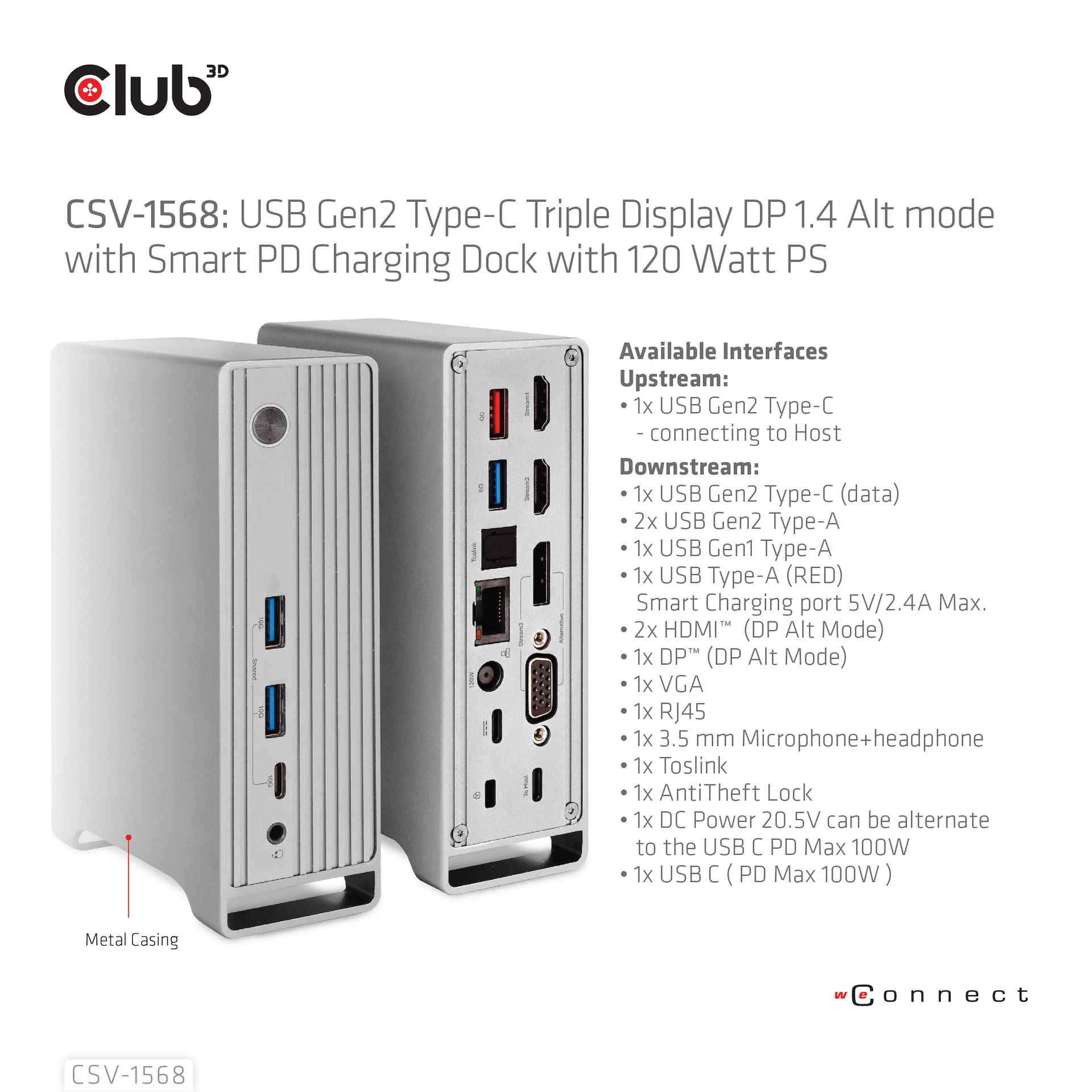

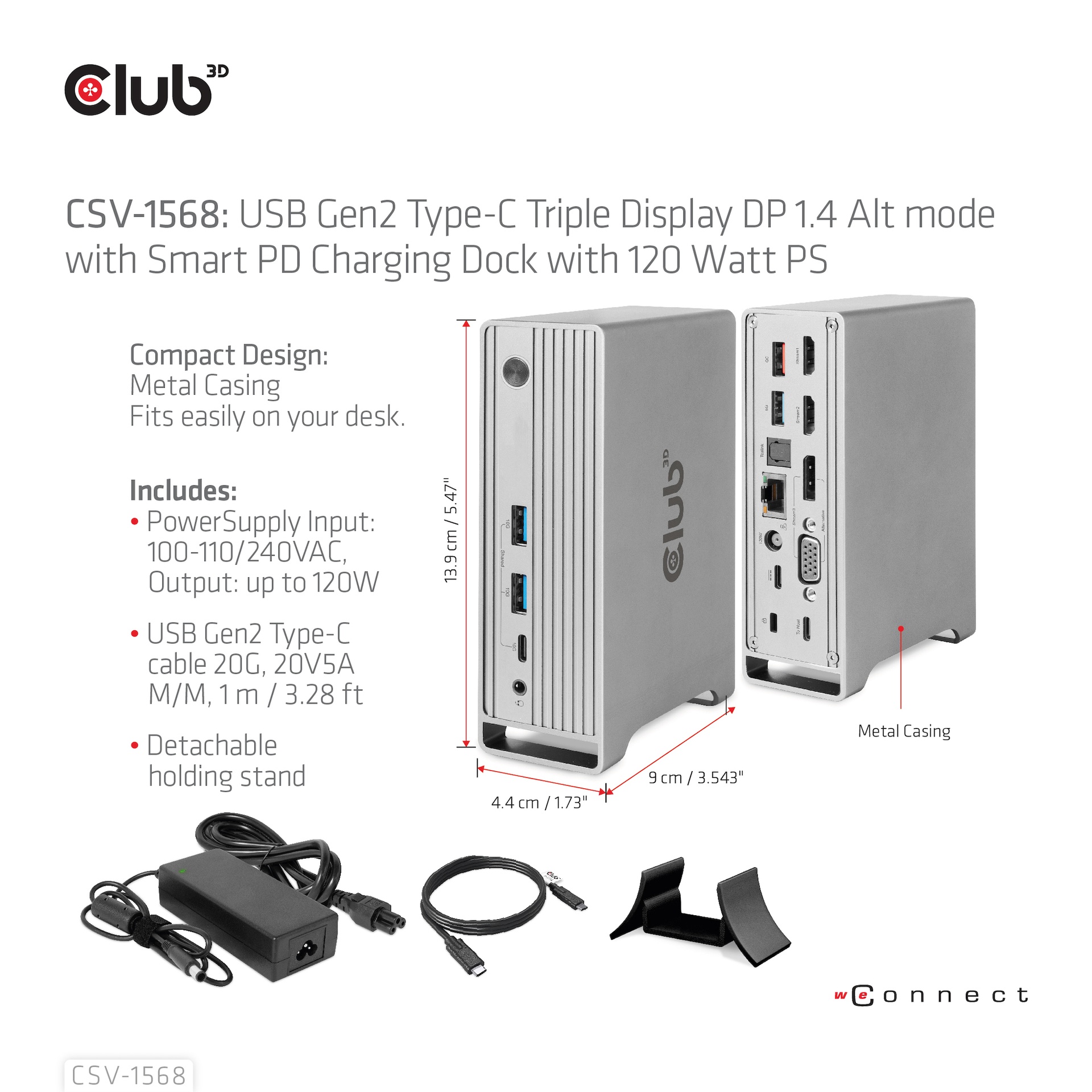

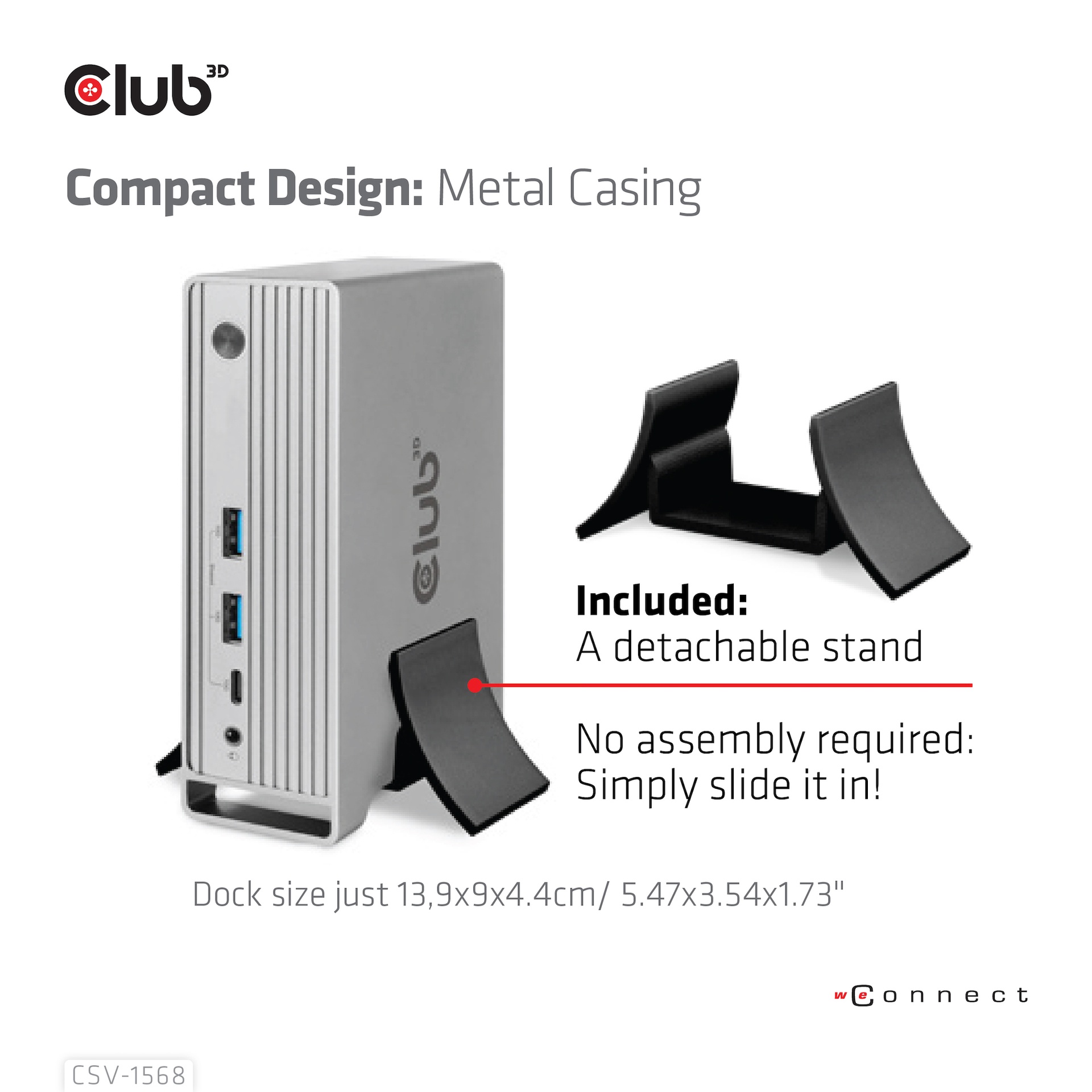

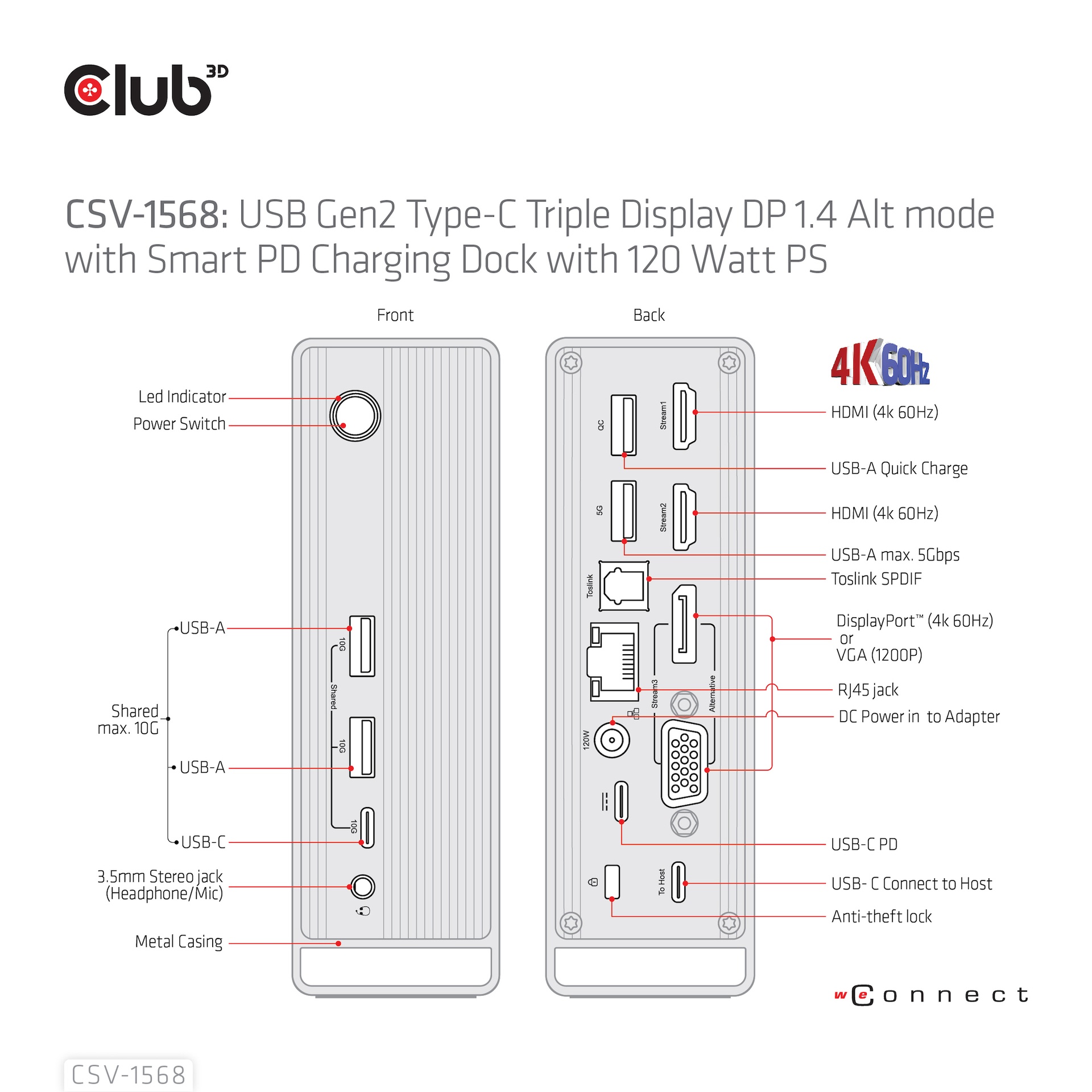

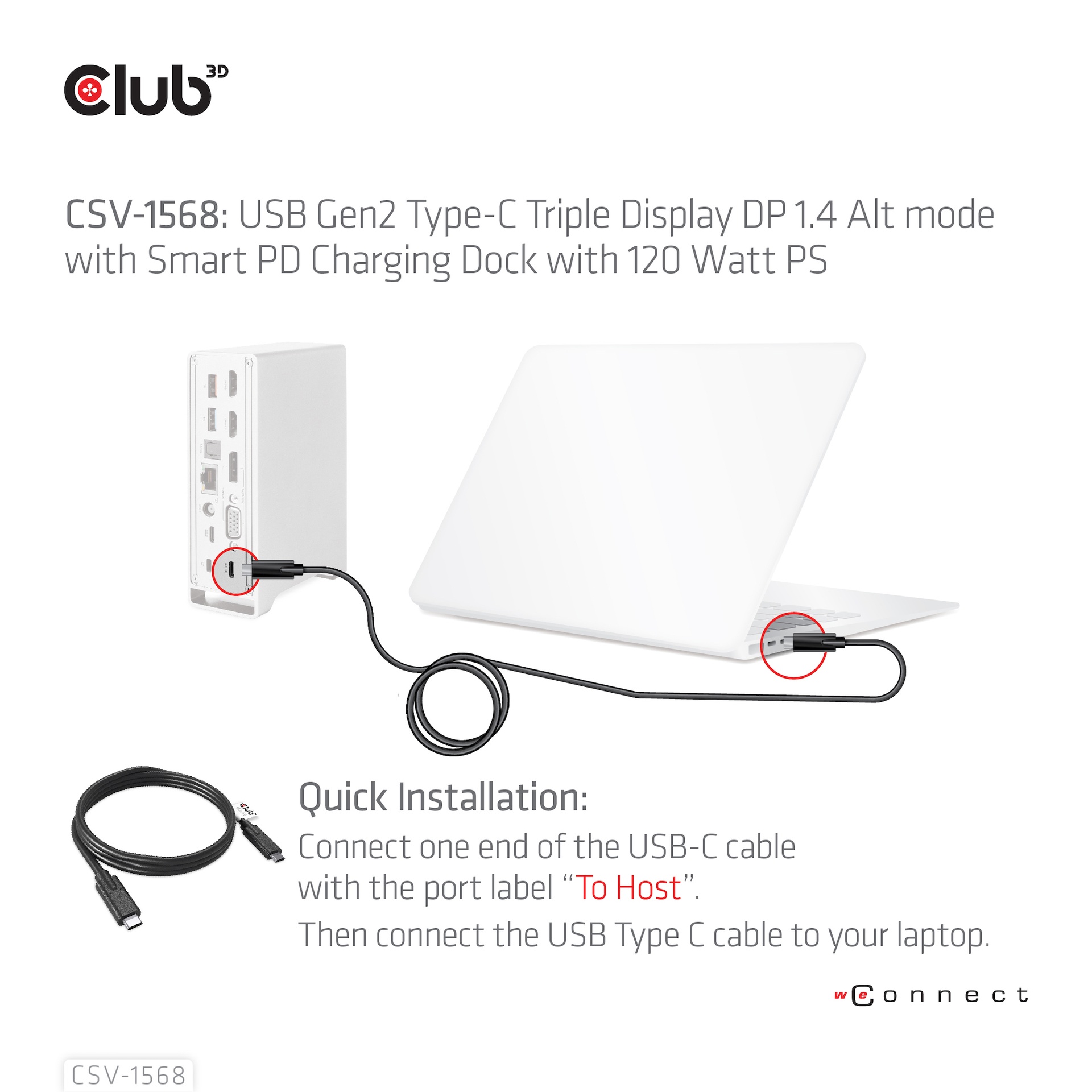

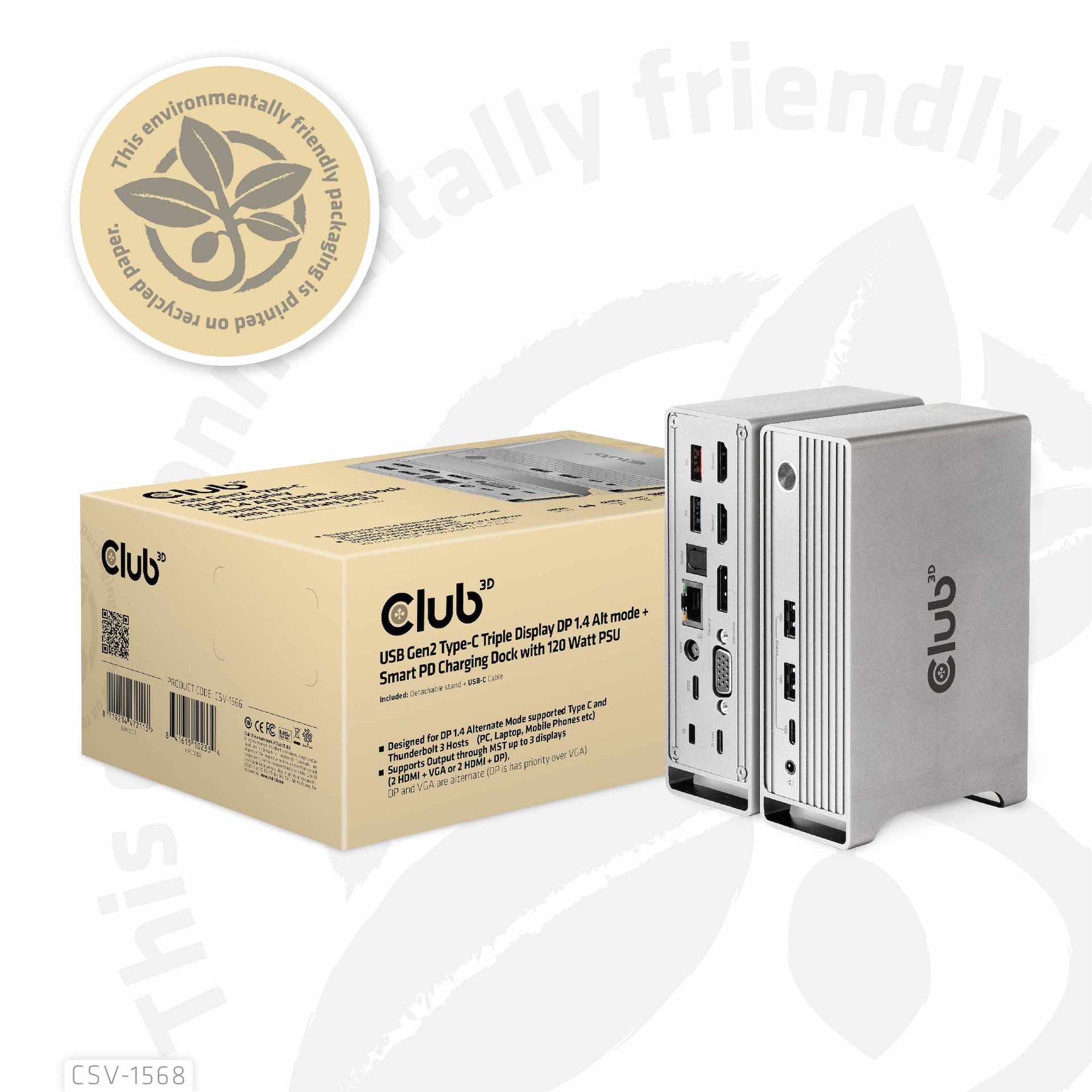

USB-C®10Gbps Triple Display DP 1.4 Alt mode Smart PD Charging Dock with 120 Watt PSU

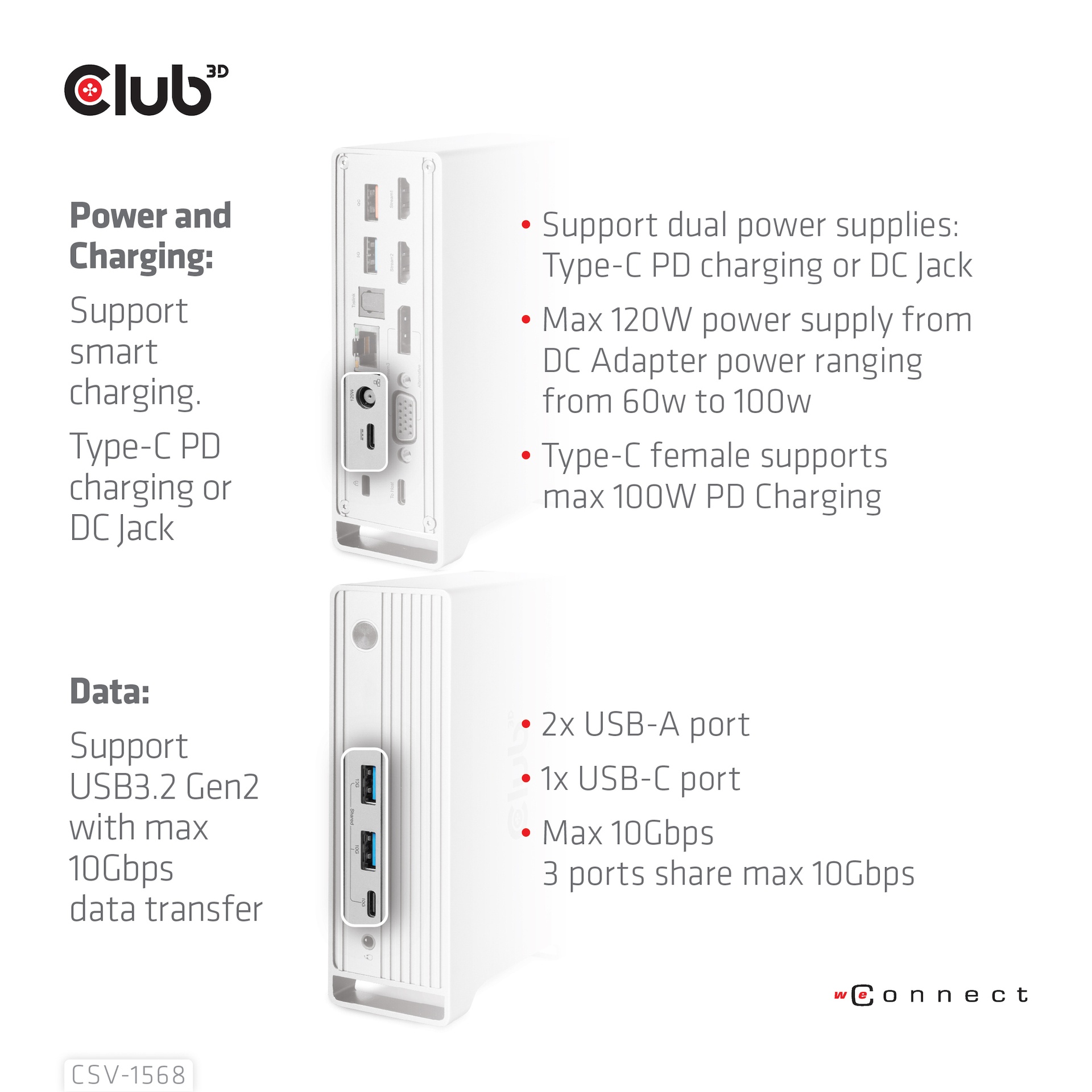

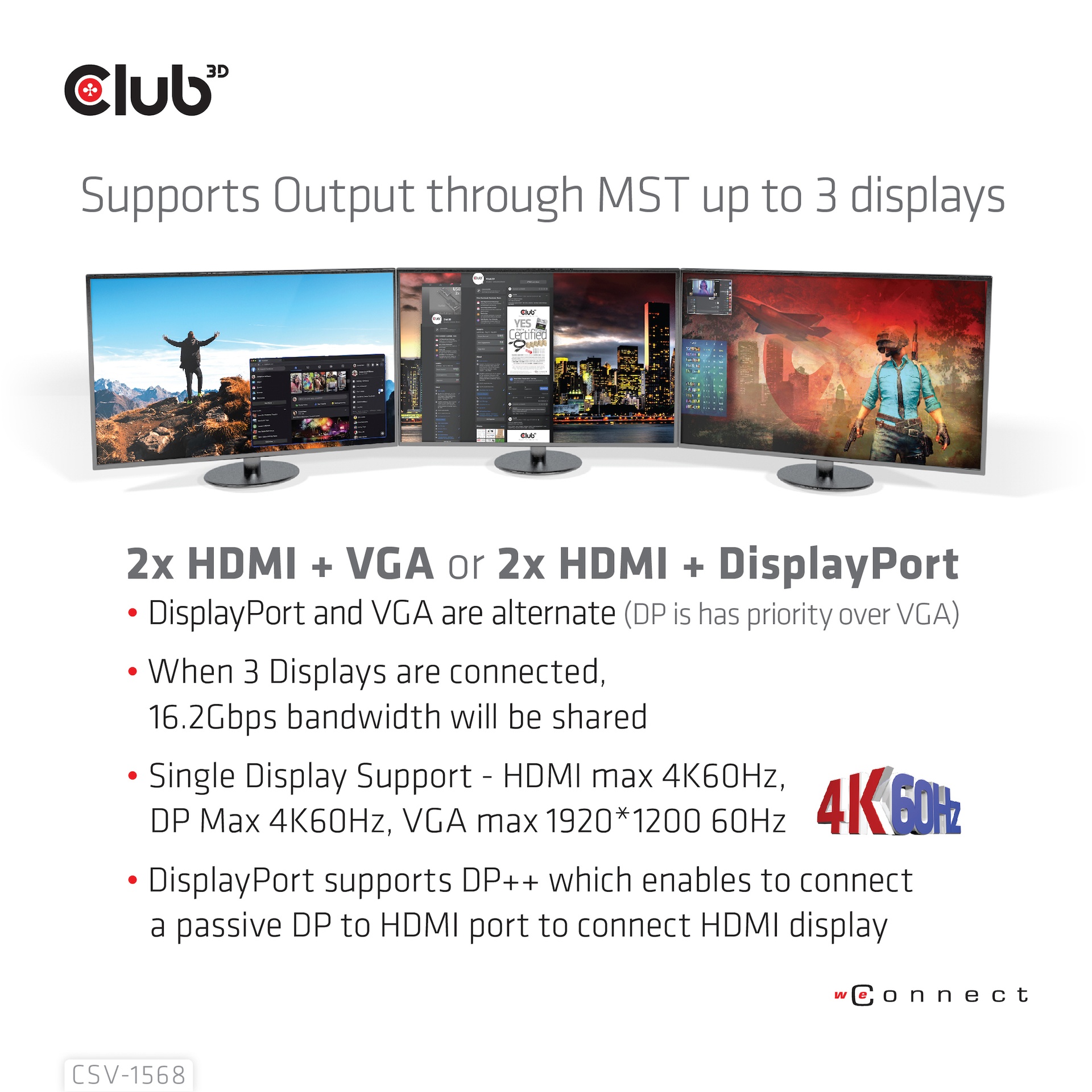

CSV-1568 Designed for DP 1.4 Alternate Mode supported Type C and Thunderbolt 3 Hosts (PC, Laptop, Mobile Phones etc.)• Supports Output through MST up to 3 displays (2 HDMI + VGA or 2 HDMI + DP). DP and VGA are alternate (DP has priority over VGA)• When 3 Displays are connected – 16.2Gbps bandwidth will be shared• Single Display Support – HDMI max 4K60Hz, DP Max 4K60Hz, VGA max 1920*1200 60Hz• DP and HDMI support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2• DP and HDMI support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2• DP and HDMI support deep color 8/10 bit• DP and HDMI support HDR• DP and HDMI support HDCP2.2 & 1.4• DisplayPort supports DP++ which enables to connect a passive DP to HDMI port to connect HDMI display• Support Gigabit Ethernet 10/100/1000M• Support USB3.2 Gen2 with max 10Gbps data transfer• Support smart charging• Support Digital audio with max 96KHz/24bit sampling rate• Support dual power supplies: Type-C PD charging or DC Jack• Type-C female supports max 100W PD Charging with fast role swap of PD3.0, support smart power which allows to distribute power according to actual consumption of the connected devices• Max 120W power supply from DC Adapter, support smart power according to actual consumption of the connected devices, the host can get power ranging from 60W to 100W
