HDMI® & USB Keyboard Mouse CAT5e Extender Kit 1080p 150M – TAA Compliant
HKM01EK is an HDMI® KVM extender that sends HDMI® & USB signal over one CAT5e or greater cable. Its TX unit has a local HDMI loop out for an extra a monitor. And there are 2 built-in USB ports.
excl GST

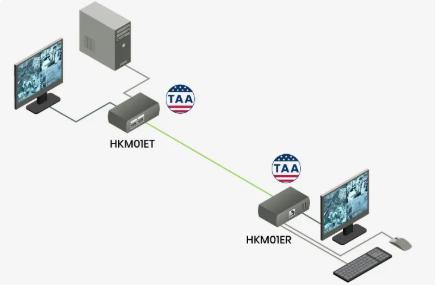

ITEM NO.: HKM01EK is an HDMI® KVM extender that sends HDMI® & USB signal over one CAT5e or greater cable. Its TX unit has a local loop out for an extra HDMI® monitor. And there are 2 built-in USB ports at the RX unit to connect with one keyboard and one mouse. It is an ideal solution for CCTV DVR / NVR Access, digital signage that has Mouse and Keyboard allowing access remotely on the same cabling infrastructure and for installation were easy access for a second user from a centralised PC.
- Best 1080p KVM over CAT Extender set for TAA.
- Resolutions up to 1080p@60Hz, 1920 x 1200@60Hz.
- Signal extension up to 492ft/150m over CAT5e, 525ft/160m over CAT6.
- Built-in HDMI loop-out port for an extra HDMI display at the transmitter side.
- Built in 2 USB 1.1 ports at receiver side. (only for Keyboard & Mouse)
- CAT5e/6 Transmission (Up to 150m).
- Plug-and-Play Setup. No software, drivers, or configuration needed. Fast, reliable deployment every time.
- No visible latency.
- Note TX and RX can be installed on a local area network (lan) Point – Point and not be attached to an existing network (Hardware/ switch’s) this is a good solution for direct attachment to an NVR or PC that requires quick access with “keyboard and Mouse and Video functionality over distance in another location with existing links (infrastructure) .
